Product Model

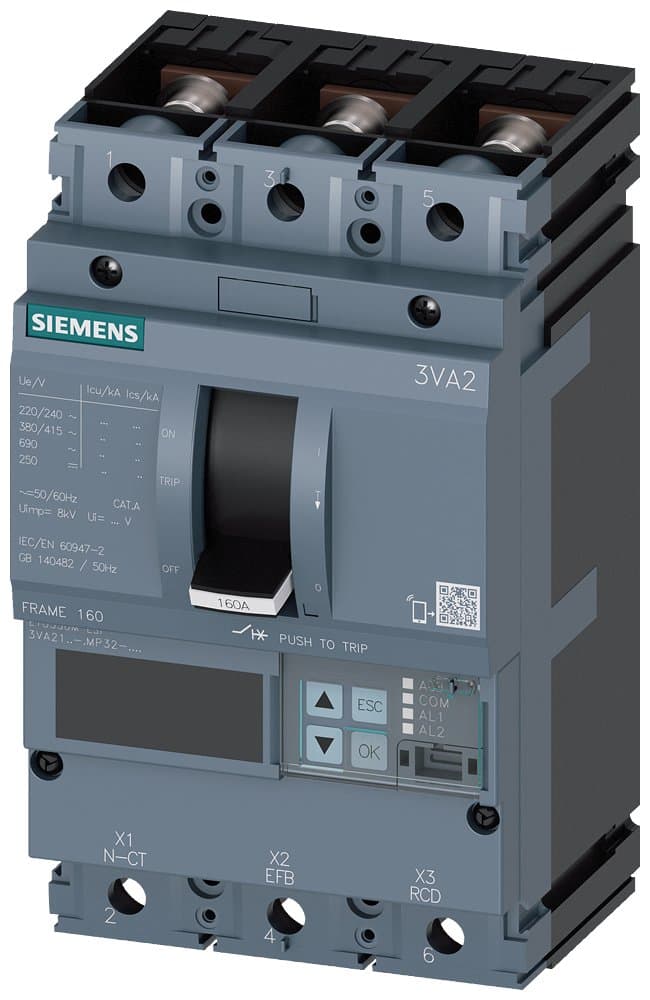

3VA2110-5MP32-0AA0
Selling Points
- 1High breaking capacity of 160 A and 55 kA at 415 V.
- 23-pole motor protection with ETU550M.
- 3Overload protection up to 100 A and short-circuit protection up to 40 A.
- 4IEC Frame 160 for reliable and compact design.
- 5Fully tested with a 2-Year warranty available for refurbished units.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M160 R100 ETU550M F/3P; 3VA2_160 dimensions; Rated Current 100A; Interrupting M:55kA; Trip Unit ETU550M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-5MP32-0AA0 |
Specifications may be subject to change without notice
