Product Model

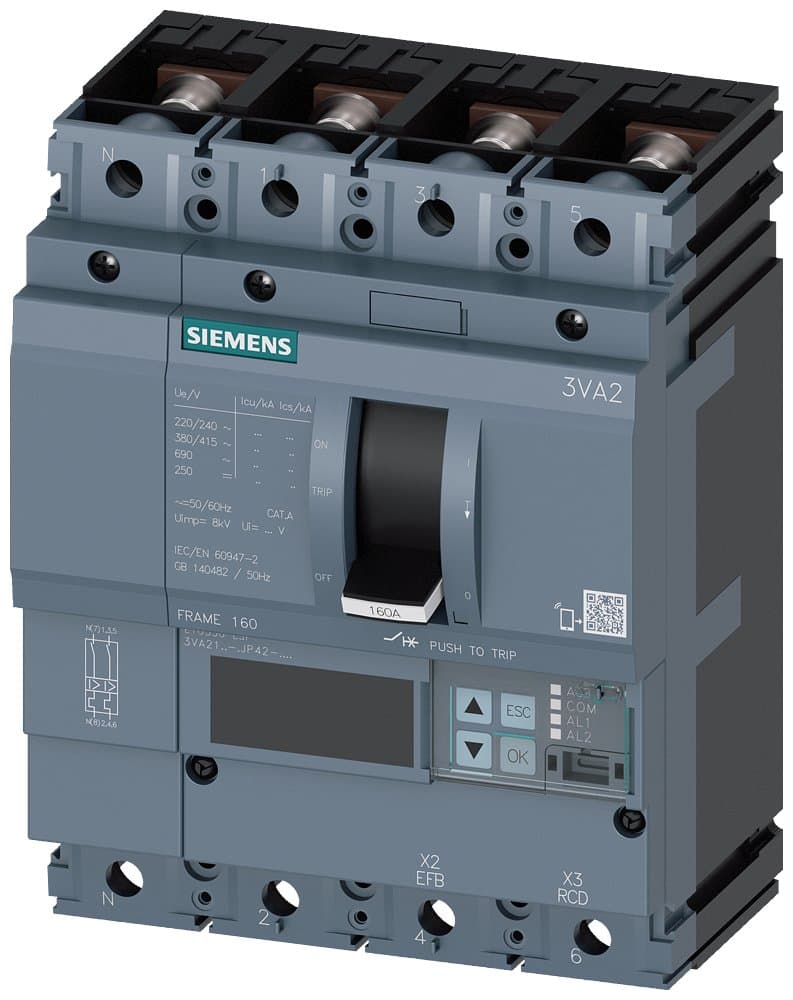

3VA2110-6JP42-0AA0
Selling Points
- 1The 3VA2110-6JP42-0AA0 circuit breaker features a high breaking capacity of up to 85 kA at 415 V, ensuring reliable protection against short circuits.
- 2Equipped with electronic trip units, this circuit breaker provides integrated metering functions for precise energy measurement and monitoring.
- 3Designed for selective protection, it ensures that only the faulty circuit is tripped, minimizing downtime and improving overall system efficiency.
- 4With a compact design and plug-in technology, it offers flexibility in installation and easy integration into various electrical systems.
- 5Provides comprehensive line protection, including overload and short-circuit protection, ensuring the safety of personnel and equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2H160 R100 ETU550 F/4P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU550; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-6JP42-0AA0 |
Specifications may be subject to change without notice
