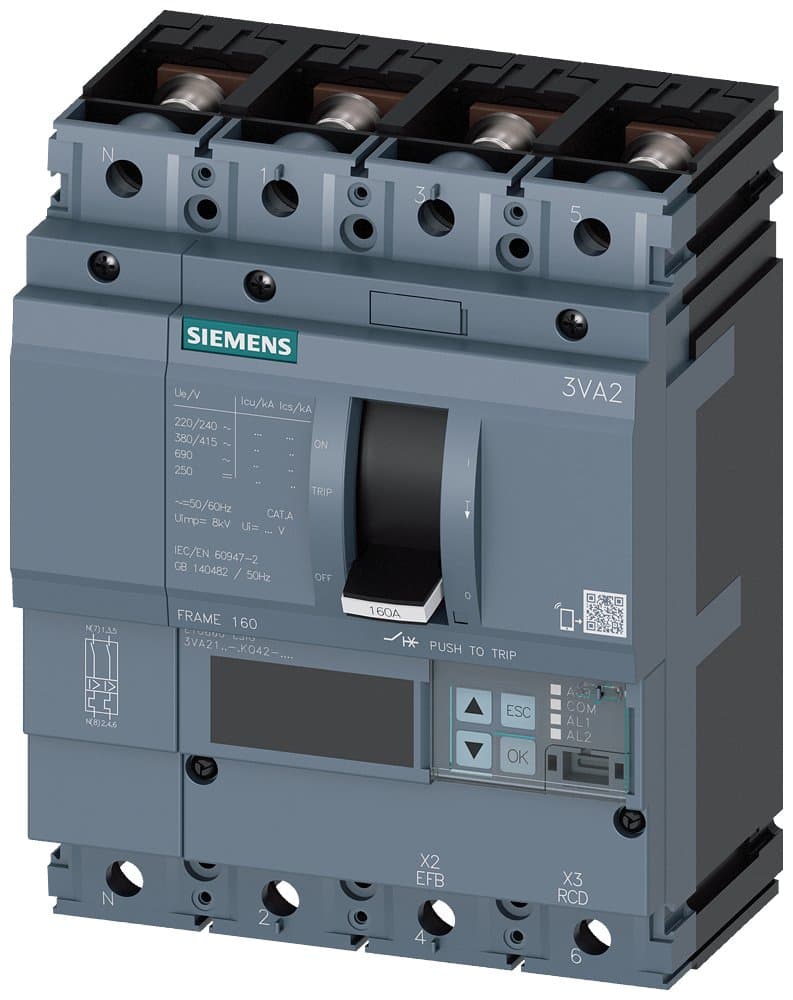

Product Model
3VA2110-6KQ42-0AA0
Selling Points
- 1High-Performance Protection: Offers robust 4-pole protection and 85kA breaking capacity for reliable line protection.
- 2Efficient Overload Management: Provides 100A current and 40A overload protection to safeguard against electrical surges.
- 3Compact Design: Fits into IEC frame 160, ensuring compact and space-efficient installation.
- 4Advanced Features: Equipped with ETU860 and LSIG for enhanced line protection and monitoring capabilities.
- 5Industry-Standard Compliance: Meets industry standards for circuit breakers, ensuring compatibility and reliability in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2H160 R100 ETU860 F/4P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU860; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860 [Electronic LSIG+LCD+Mea] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-6KQ42-0AA0 |
Specifications may be subject to change without notice
