Product Model

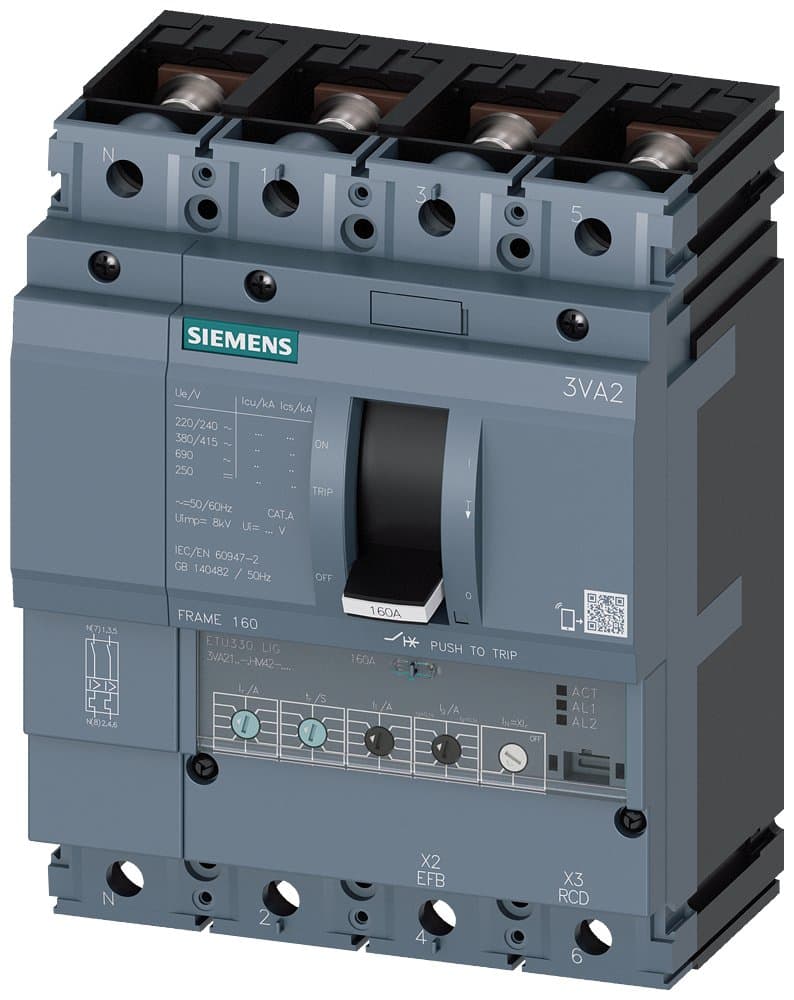

3VA2110-7HM42-0AA0
Selling Points
- 1High breaking capacity of 110 kA at 415 V.
- 2IEC Frame 160 with 4-pole configuration.
- 3Line protection with ETU330 and LI features.
- 4Overload protection with In=100A.
- 5Suitable for industrial applications requiring high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C160 R100 ETU330 F/4P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating C:110kA; Trip unit ETU330; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-7HM42-0AA0 |
Specifications may be subject to change without notice
