Product Model

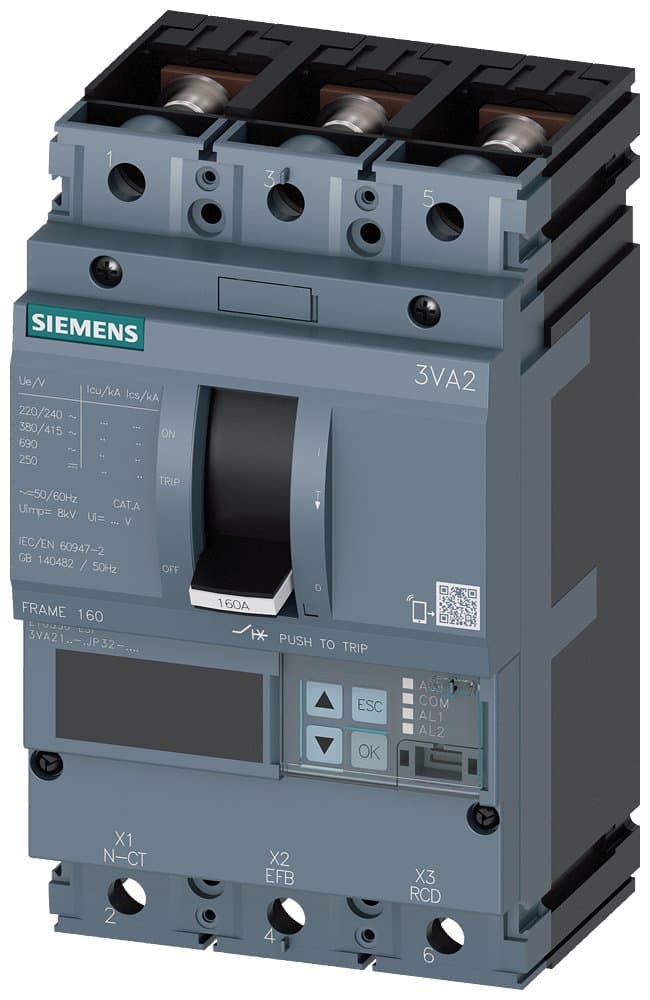

3VA2116-7JP32-0AA0
Selling Points
- 1Adaptable to various applications with a wide range of modular accessories.
- 2Equipped with electronic trip units for precise current measurement and advanced communication capabilities.
- 3Comprehensive protection components ensure personnel safety and line protection.
- 4Optimizes plant availability and energy efficiency through advanced power distribution solutions.
- 5Easy-to-fit internal accessories provide diverse functions, enhancing system flexibility and maintainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C160 R160 ETU550 F/3P; 3VA2_160 dimensions; Rated current 160A; Interrupting rating C:110kA; Trip unit ETU550; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550【Electronic LSI+LCD】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2116-7JP32-0AA0 |
Specifications may be subject to change without notice
