Product Model

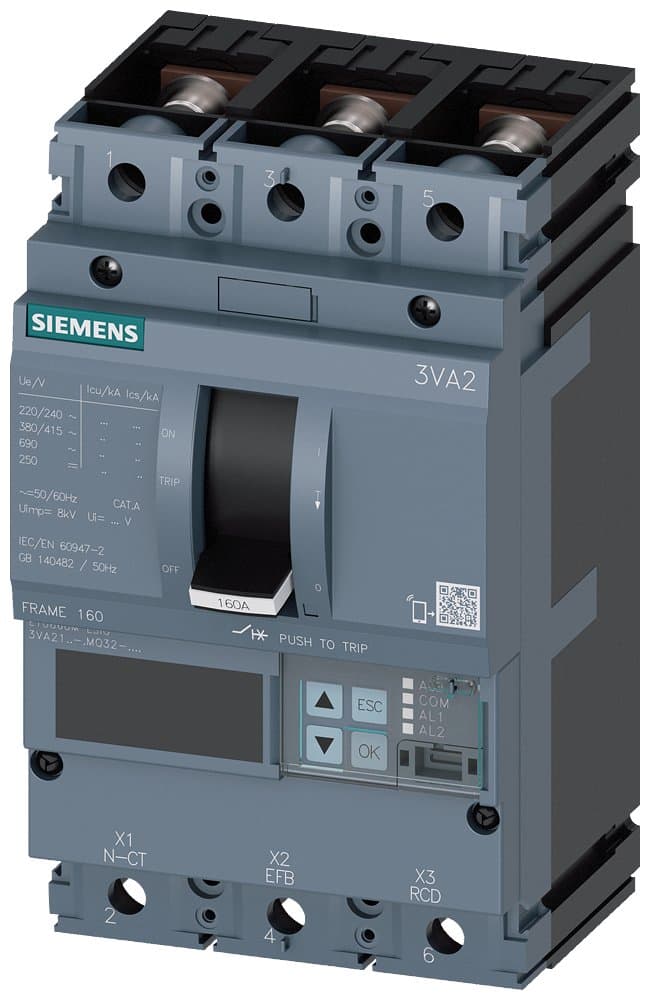

3VA2140-7MQ32-0AA0
Selling Points
- 1High breaking capacity of 110 kA at 415 V for robust protection.
- 2Integrated motor protection with ETU860M for efficient motor control.
- 3Overload protection up to 40 A for enhanced safety and reliability.
- 4Advanced communication capabilities via bus systems for seamless integration.
- 5Compact design with modular accessories for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C160 R40 ETU860M F/3P; 3VA2_160 Size; Rated Current 40A; Interrupting C:110kA; Trip Unit ETU860M; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 40 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2140-7MQ32-0AA0 |
Specifications may be subject to change without notice
