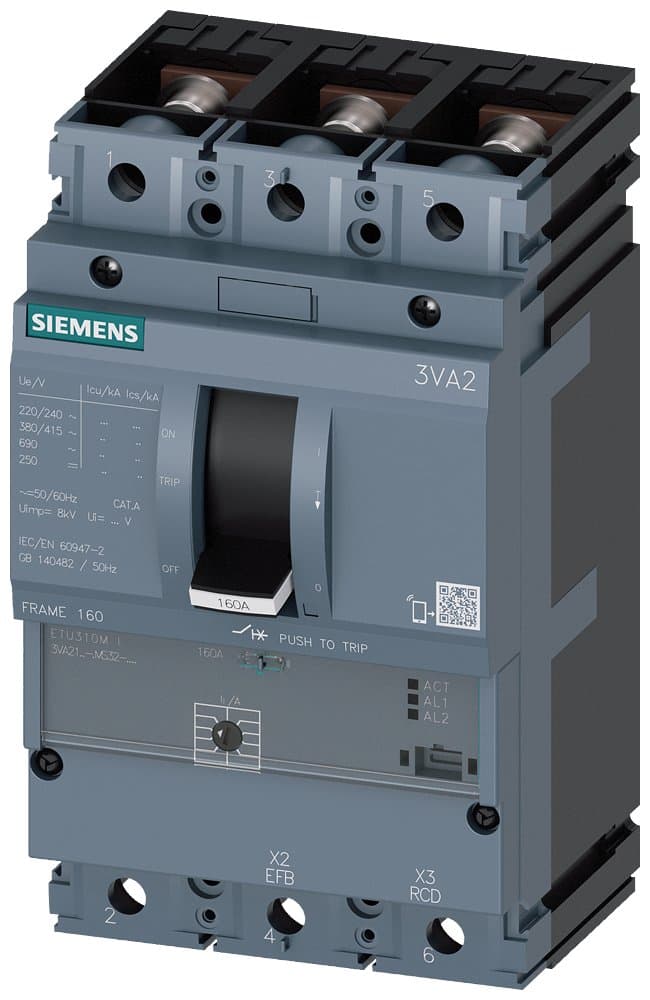

Product Model
3VA2140-7MS32-0AA0
Selling Points
- 1110kA at 415V for reliable circuit protection.
- 2Designed with ETU310M starter protection for efficient motor control.
- 3IEC Frame 160 for space-saving installations in industrial settings.
- 4Suitable for a wide range of applications including industrial and commercial use.
- 5Built to withstand harsh environments with robust materials and design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C160 R40 ETU310M F/3P; 3VA2_160 Dimensions; Rated Current 40A; Interrupting Rating C:110kA; Trip Unit ETU310M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU310M [Electronic Type with Only Short Circuit Protection, Adjustable I] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 40 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2140-7MS32-0AA0 |
Specifications may be subject to change without notice
