Product Model

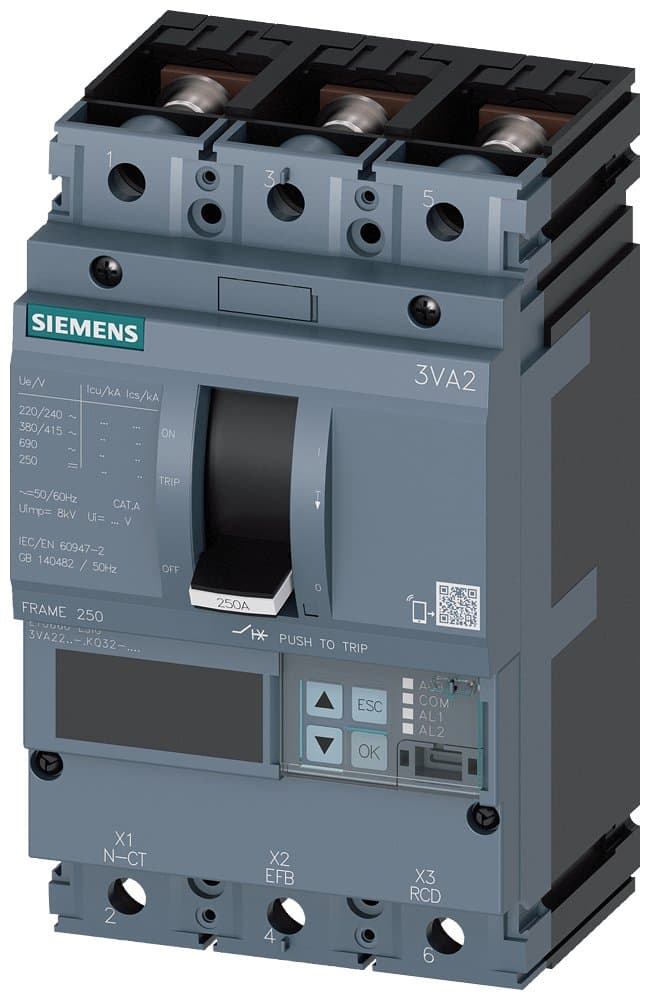

3VA2216-5KQ32-0AA0
Selling Points
- 1High breaking capacity up to 55 kA at 415 V AC.
- 2Selective protection for precise tripping in case of short circuits.
- 3Integrated metering function for accurate energy measurement.
- 4Compact design with plug-in and draw-out technology options.
- 5Advanced electronic trip units with fieldbus communication interface.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M250 R160 ETU860 F/3P; 3VA2_250 dimensions; Rated Current 160A; Interrupting M:55kA; Trip Unit ETU860; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860 [Electronic LSIG+LCD+Mea] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 160 | Specifications: | 250 [160-250A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-5KQ32-0AA0 |
Specifications may be subject to change without notice
