Product Model

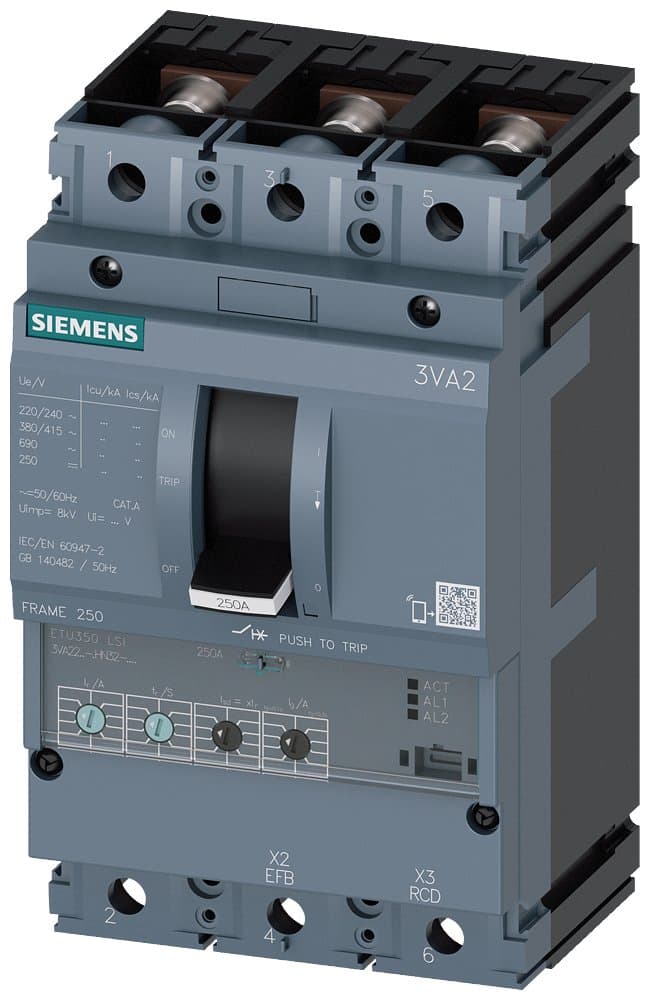

3VA2216-6HN32-0AA0
Selling Points
- 1High breaking capacity of 85 kA at 415 V, ensuring reliable short-circuit protection.
- 2Advanced Electronic Trip Unit (ETU) for precise current measurement and energy management.
- 3Compact design with a cover size of 70 mm, suitable for various mounting options.
- 4Modular and easy-to-fit internal accessories for diverse functions and customization.
- 5Integrated metering function and flexible communication options via bus systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H250 R160 ETU350 F/3P; 3VA2_250 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU350; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350【Electronic LSI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-6HN32-0AA0 |
Specifications may be subject to change without notice
