Product Model

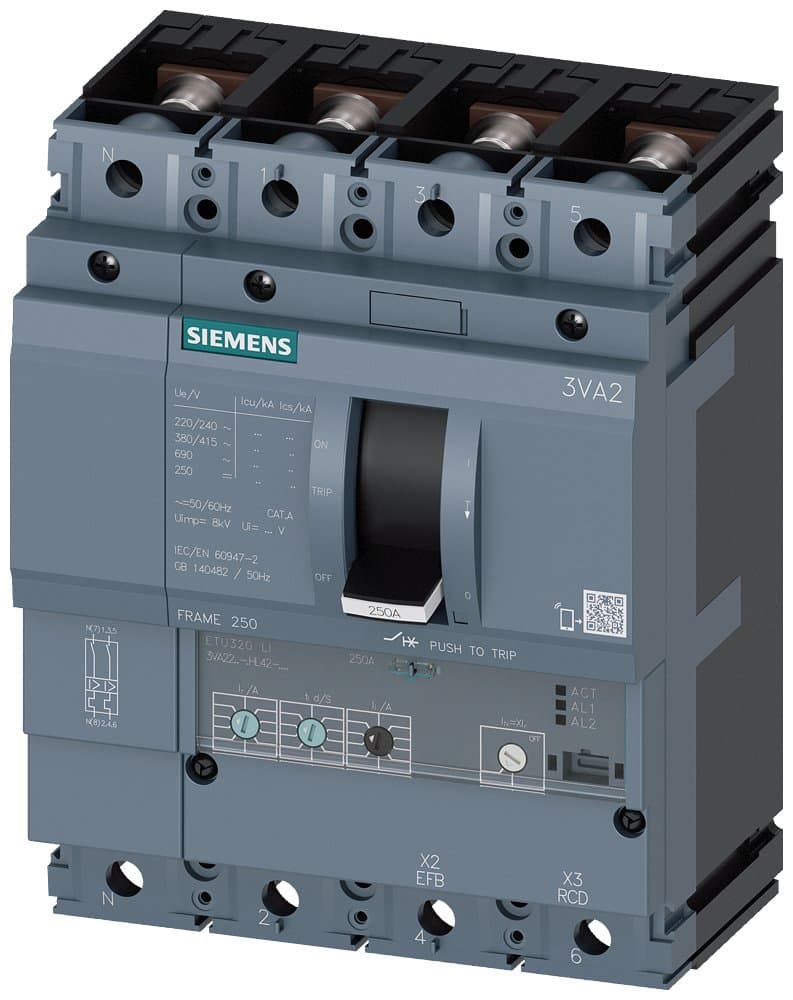

3VA2216-7HL42-0AA0
Selling Points
- 1High breaking capacity of 110 kA at 415 V for enhanced safety.
- 2Compact dimensions with a cover size of 70 mm for easy installation.
- 3Advanced electronic trip units with integrated metering function for precise energy management.
- 4Modular design with diverse internal accessories for flexible customization.
- 5Reliable protection against short-circuits and overloads with thermal-magnetic trip units.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C250 R160 ETU320 F/4P; 3VA2_250 dimensions; Rated Current 160A; Interrupting Rating C:110kA; Trip Unit ETU320; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320 [Electronic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 160 | Specifications: | 250 [160-250A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-7HL42-0AA0 |
Specifications may be subject to change without notice
