Product Model

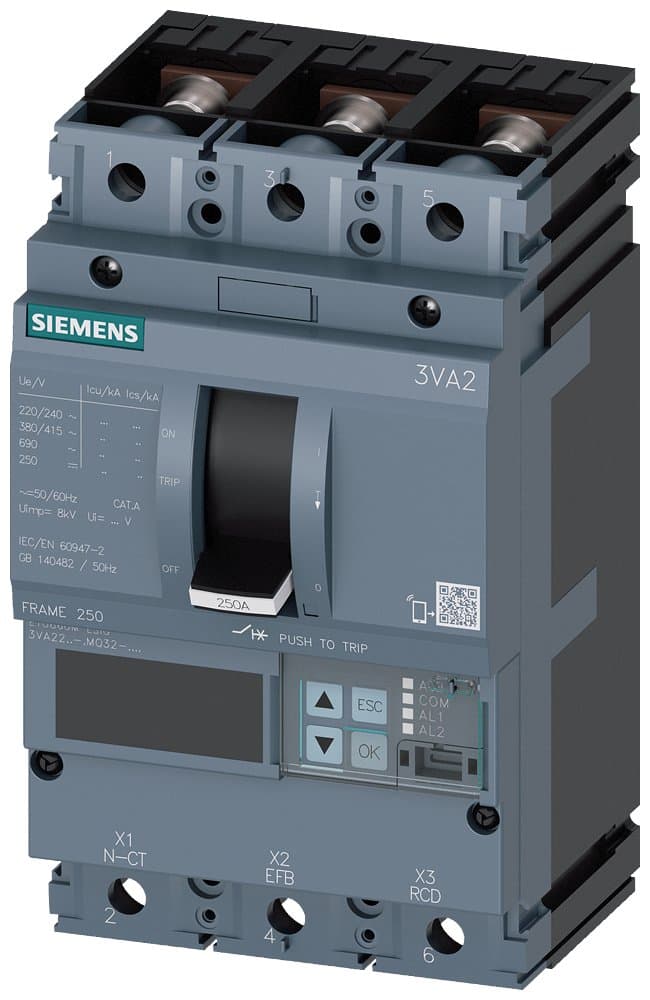

3VA2216-7MQ32-0AA0
Selling Points
- 1110 kA at 415 V, ensuring reliable protection against short circuits.
- 2Equipped with ETU860M for efficient motor protection and selective tripping.
- 3Compact dimensions with a cover size of 70 mm, suitable for various mounting options.
- 4In=160 A overload protection and Ir=63 A residual current protection for enhanced safety.
- 5Compatible with various bus systems and communication modules for seamless integration into automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C250 R160 ETU860M F/3P; 3VA2_250 dimensions; Rated Current 160A; Interrupting C:110kA; Trip Unit ETU860M; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-7MQ32-0AA0 |
Specifications may be subject to change without notice
