Product Model

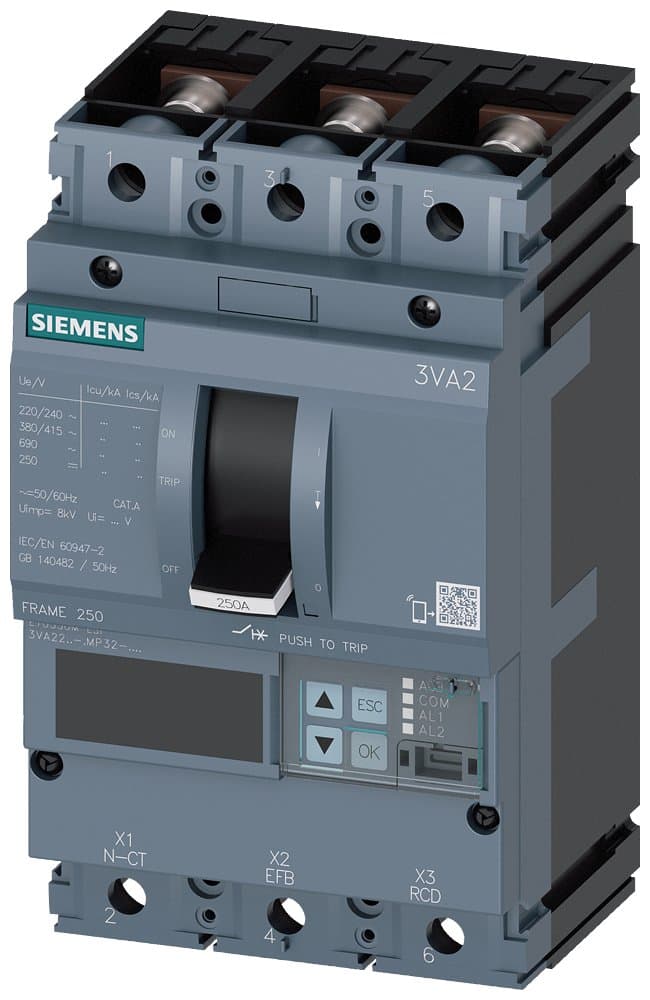

3VA2220-5MP32-0AA0
Selling Points
- 1High-Performance Motor Protection: The 3VA2220-5MP32-0AA0 is designed to protect motors from overcurrents and short circuits, ensuring reliable operation in industrial settings.
- 2Advanced Overcurrent Release: Equipped with ETU550M and LSI protection functions, this circuit breaker provides robust motor protection against various overcurrent scenarios.
- 3Robust Electrical Endurance: Withstanding up to 12,000 operating cycles at 380/415 V AC-1 conditions, this breaker ensures long-lasting performance in demanding environments.
- 4Adjustable Trip Settings: Offers adjustable response values for L-tripping and S-tripping, allowing for customizable protection settings to meet specific application needs.
- 5Comprehensive Certifications: Meets stringent industry standards including IEC 60947 and RoHS compliance, ensuring safety and reliability in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics (kA) | @400V or 415V 55 | Rated Voltage (V) | 690 |
Number of Poles | 3P | Description | 3VA2M250 R200 ETU550M F/3P; 3VA2_250 dimensions; Rated current 200A; Interrupting rating M:55kA; Trip unit ETU550M; |
Mounting Method | F: Fixed | Trip Unit (Reset if not listed and select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
Rated Ultimate Breaking Capacity Icu (kA) | @400V or 415V 55 | Interrupting Rating | M:55kA |
Rated Current In (A) | 200 | Specifications | 250 [160-250A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2220-5MP32-0AA0 |
Specifications may be subject to change without notice
