Product Model

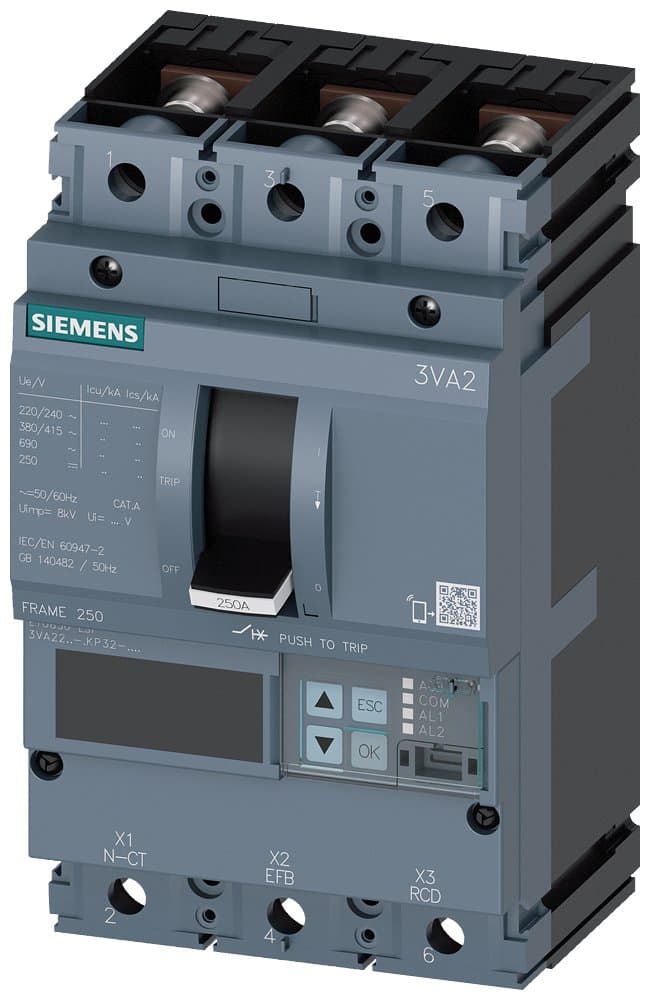

3VA2225-6KP32-0AA0
Selling Points
- 1Compact design with a mounting depth of 70 mm for easy installation.
- 2High breaking capacity of up to 32 kA at 240 V for reliable line protection.
- 3Modular and easy-to-fit internal accessories for flexible use in various applications.
- 4Thermal-magnetic trip units provide efficient overload and short-circuit protection.
- 5Free delivery available from the Siemens Industry Mall for convenient ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H250 R250 ETU850 F/3P; 3VA2_250 dimensions; Rated Current 250A; Interrupting Rating H:85kA; Trip Unit ETU850; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850【Electronic LSI+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2225-6KP32-0AA0 |
Specifications may be subject to change without notice
