Product Model

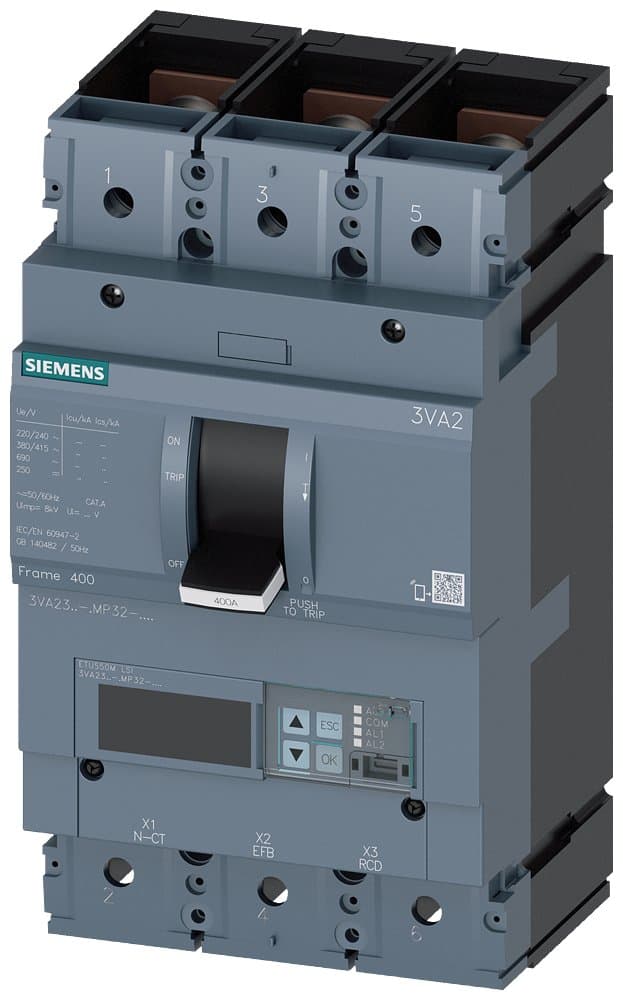

3VA2325-5MP32-0AA0
Selling Points
- 1High breaking capacity of 55 kA @ 415 V.
- 2Motor protection with ETU550M and LSI.
- 3IEC Frame 400 for reliable operation.
- 4Overload protection with In=250 A and Ir=100 A.
- 5Compliant with REACH Regulation for safe use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M400 R250 ETU550M F/3P; 3VA2_400 dimensions; Rated current 250A; Interrupting capacity M:55kA; Trip unit ETU550M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2325-5MP32-0AA0 |
Specifications may be subject to change without notice
