Product Model

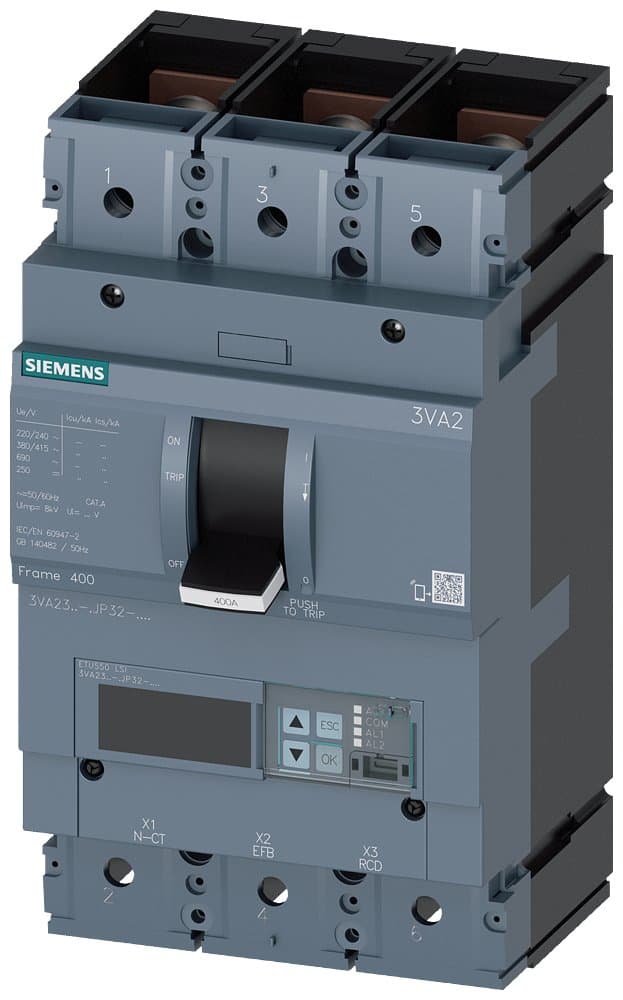

3VA2340-5JP32-0AA0
Selling Points
- 1High short-circuit breaking capacity up to 85kA.
- 2Electronic trip unit with adjustable settings for long-time, short-time, and instantaneous protection.
- 3Rated for 400A and 690V operating voltage.
- 4Compliant with IEC 60947-2 standards for reliability and safety.
- 5Designed for surface mounting with excellent electrical durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage (V): | 690 |
Number of Poles: | 3P | Description | 3VA2M400 R400 ETU550 F/3P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating M:55kA; Trip unit ETU550; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2340-5JP32-0AA0 |
Specifications may be subject to change without notice
