Product Model

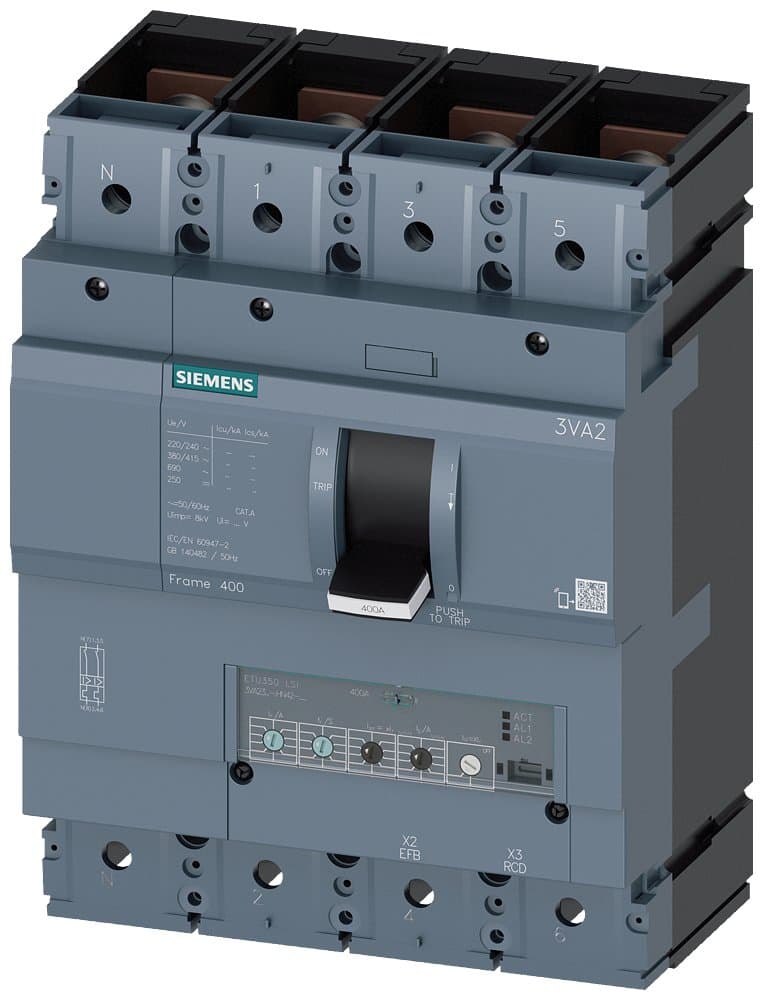

3VA2340-7HN42-0AA0
Selling Points
- 1High breaking capacity with Icu=110 kA @ 415 V.
- 24-pole design for enhanced electrical safety.
- 3Line protection with ETU350 and LSI.
- 4Overload protection up to 400 A.
- 5Compliant with IEC Frame 400 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C400 R400 ETU350 F/4P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating C:110kA; Trip unit ETU350; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350 [Electronic LSI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2340-7HN42-0AA0 |
Specifications may be subject to change without notice
