Product Model

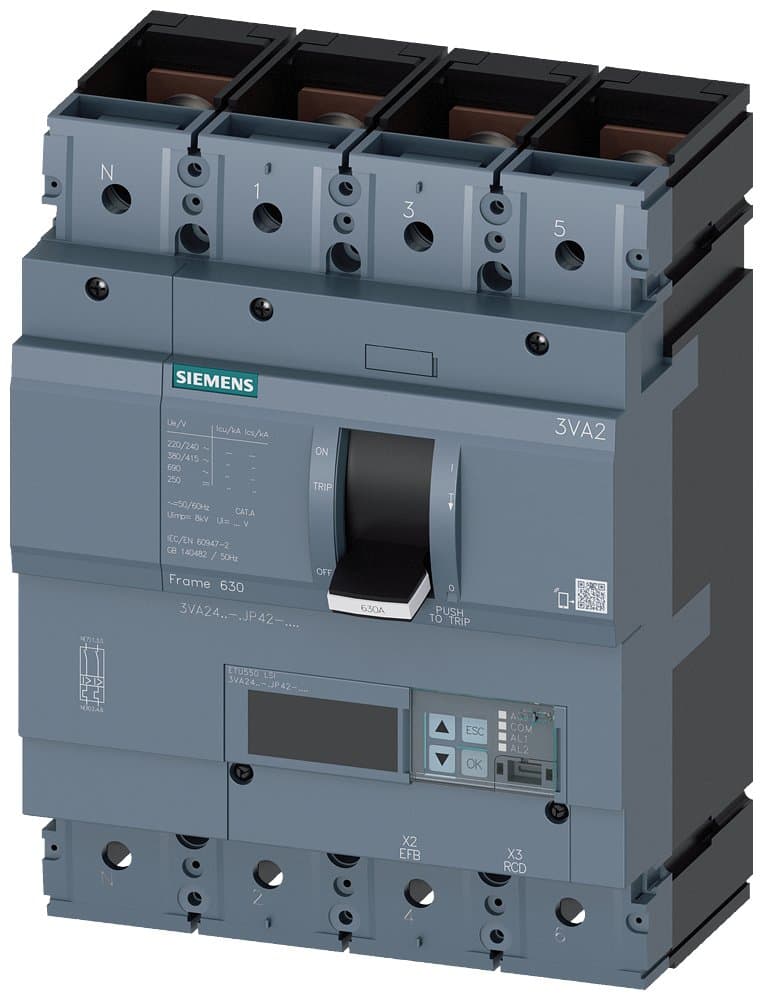

3VA2440-6JP42-0AA0
Selling Points
- 1High breaking capacity up to 85 kA for reliable short-circuit protection.
- 2Compact design with 3 and 4-pole versions for flexible installation.
- 3Integrated electronic trip units with metering functions for energy management.
- 4Modular and easy-to-fit internal accessories with diverse functions.
- 5Compliance with international standards (IEC 60947-2) for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2H630 R400 ETU550 F/4P; 3VA2_630 dimensions; Rated current 400A; Interrupting rating H:85kA; Trip unit ETU550; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 400 | Specifications: | 630 [400-630A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2440-6JP42-0AA0 |
Specifications may be subject to change without notice
