Product Model

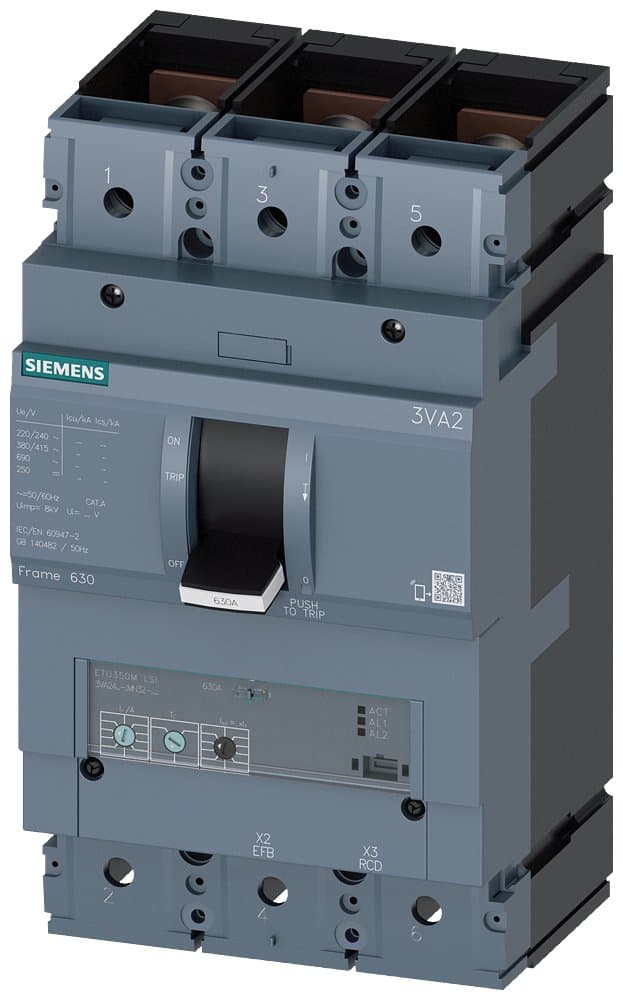

3VA2440-7MN32-0AA0
Selling Points
- 1Reliable Motor Protection: Safeguards motors against overloads and short circuits.
- 2High Breaking Capacity: 110 kA at 415 V for effective circuit interruption.
- 3IEC Frame 630: Compact design suitable for various industrial applications.
- 4Electronic Trip Unit: Advanced ETU350M for precise and reliable shutdown.
- 5LSI and In=400 A: Integrated LSI and 400 A overload protection for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C630 R400 ETU350M F/3P; 3VA2_630 dimensions; Rated Current 400A; Interrupting C:110kA; Trip Unit ETU350M; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350M【Motor Protection LSI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 400 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2440-7MN32-0AA0 |
Specifications may be subject to change without notice
