Product Model

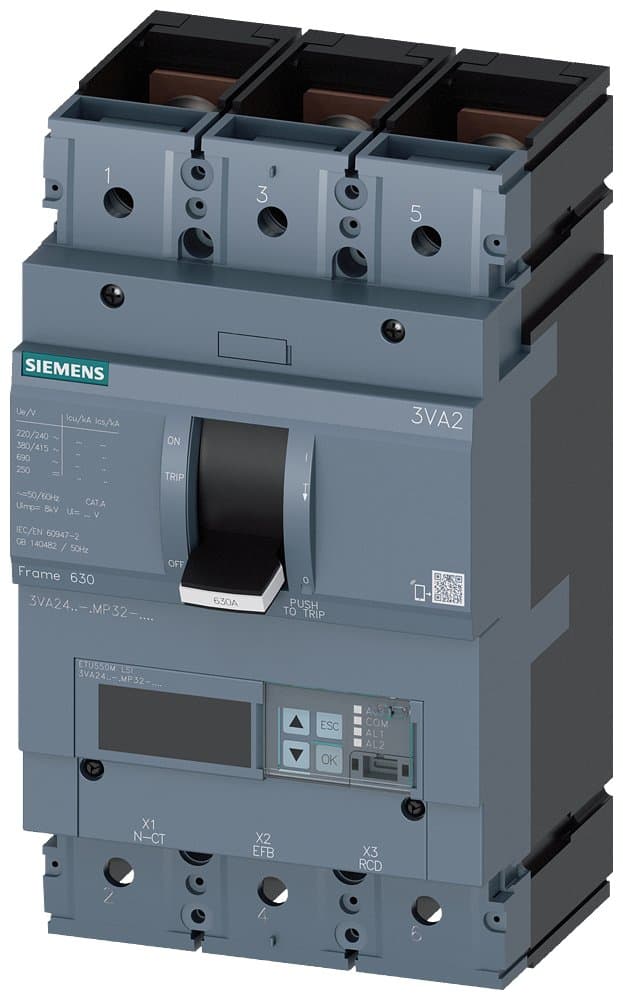

3VA2450-7MP32-0AA0
Selling Points
- 1High breaking capacity of 110 kA at 415 V for reliable motor protection.
- 2Advanced LSI and ETU550M overcurrent release designs for enhanced safety.
- 3500 A continuous current rating with adjustable overload protection.
- 4Front terminal lug connections for easy installation and maintenance.
- 5IP40 protection class and operating temperature range from -40°C to 70°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C630 R500 ETU550M F/3P; 3VA2_630 dimensions; Rated Current 500A; Interrupting C:110kA; Trip Unit ETU550M; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550M【Motor Protection LSI+LCD】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2450-7MP32-0AA0 |
Specifications may be subject to change without notice
