Product Model

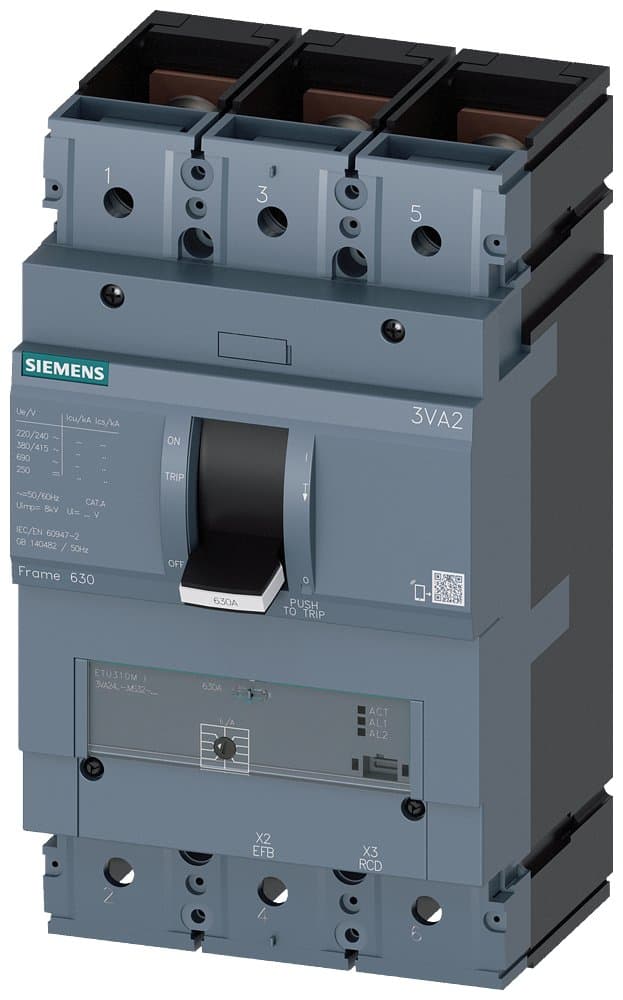

3VA2450-7MS32-0AA0
Selling Points
- 1High breaking capacity of 110 kA at 415 V.
- 23-pole design for efficient electrical protection.
- 3Starter protection with ETU310M electronic trip unit.
- 4500 A current rating without overload protection.
- 5Proven component in industry processes with reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2C630 R500 ETU310M F/3P; 3VA2_630 dimensions; Rated current 500A; Interrupting capacity C:110kA; Trip unit ETU310M; |
Mounting Method: | F: Fixed | Trip Unit: (If not in the list, click reset, select trip unit first) | ETU310M【Electronic Only Short Circuit Protection, I adjustable】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2450-7MS32-0AA0 |
Specifications may be subject to change without notice
