Product Model

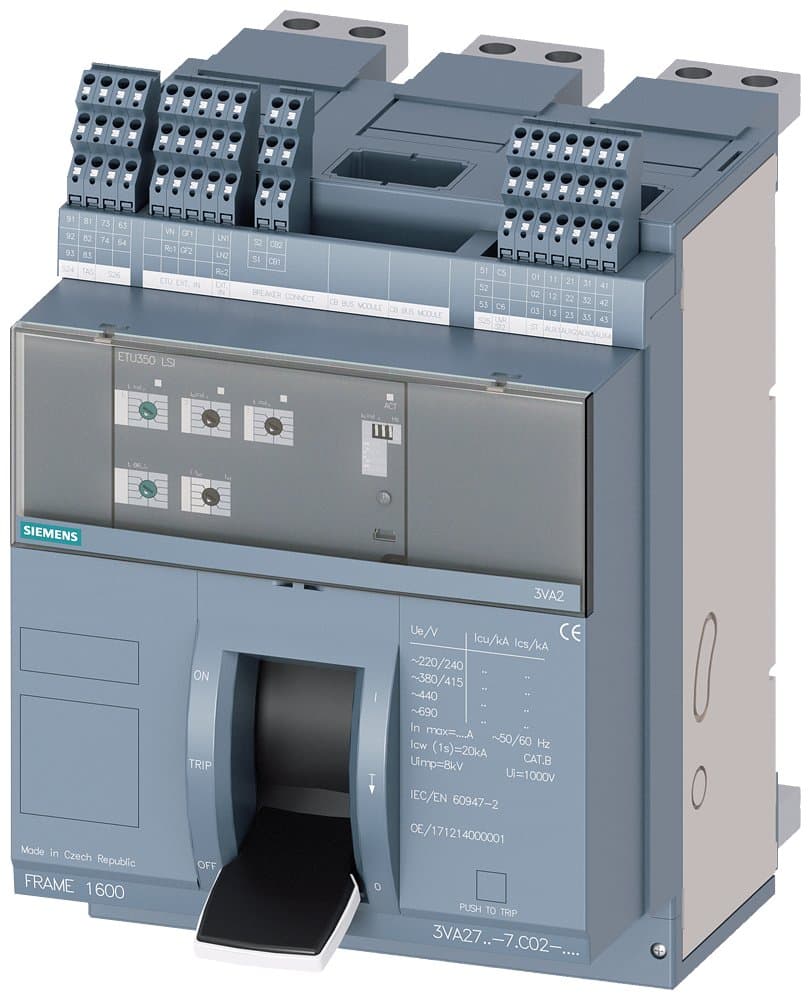

3VA2716-5AC02-0AA0
Selling Points
- 1High Current Capacity: Handles up to 1600A with robust Icu "M" rating of 55kA at 415V.
- 2Multi-Auxiliary Functions: Includes 4AUX and trip alarm switch S24 for comprehensive control.
- 3Rotary Coding Switch: Features Ir=640...1600A, Isd=1...10xIn, and Ii=1.5...15xIn for precise settings.
- 4Extended Bus Connector: Supports up to 200% straight bus connector extension for flexible installation.
- 5Mechanical Calling Mechanism: Equipped with mechanical calling without 2nd or 1st auxiliary release for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Lifecycle | P.M300 | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 3VA2716-5AC02-0AA0 |
Specifications may be subject to change without notice
