Product Model

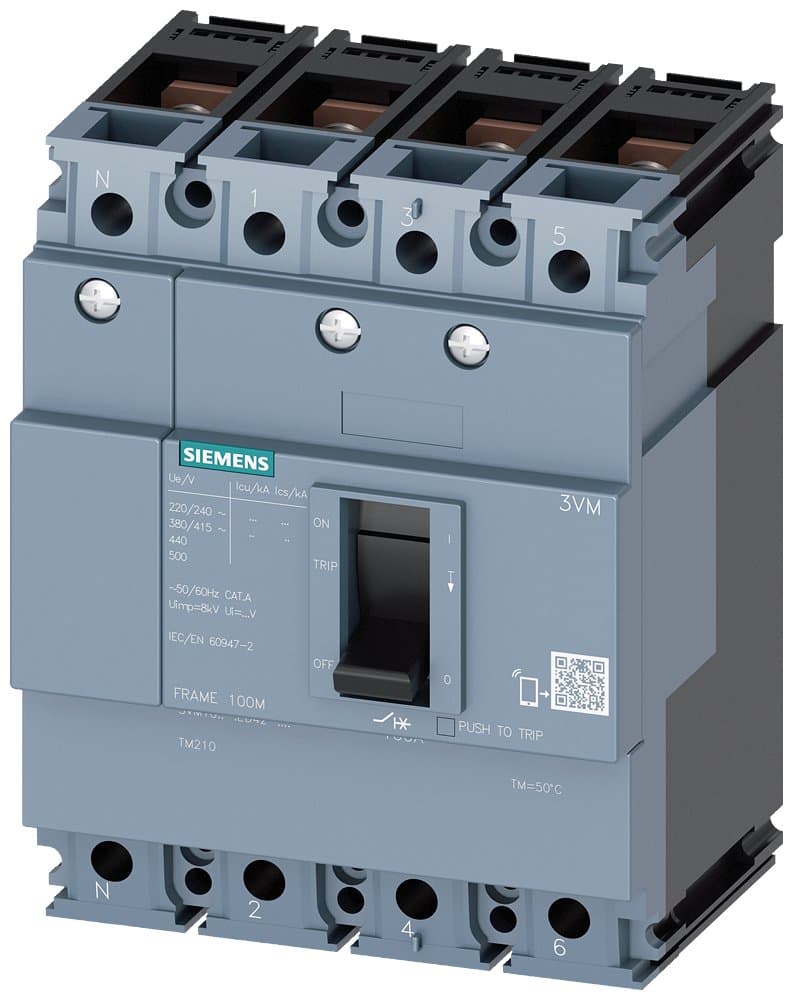

3VM1096-4ED42-0AA0
Selling Points
- 1The 3VM1096-4ED42-0AA0 features a compact design, ideal for space-efficient installations.
- 2Offers breaking capacities up to 36 kA at 415 V, ensuring robust line protection.
- 3Equipped with a thermal-magnetic trip unit for reliable overload and short-circuit protection.
- 4Suitable for various mounting positions including vertical wall, ceiling, and floor mounting.
- 5Meets IEC / EN 60947-1, IEC / EN 60947-2, and other relevant standards for electromagnetic compatibility and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 12 | Rated Voltage(V): | 415 |
Number of Poles: | 4P | Description | 3VM1S100 R16 TM210 F/4P; Size 100; Rated Current 16A; Interrupting Rating S:36kA; Trip Unit TM210; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 16 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1096-4ED42-0AA0 |
Specifications may be subject to change without notice
