Product Model

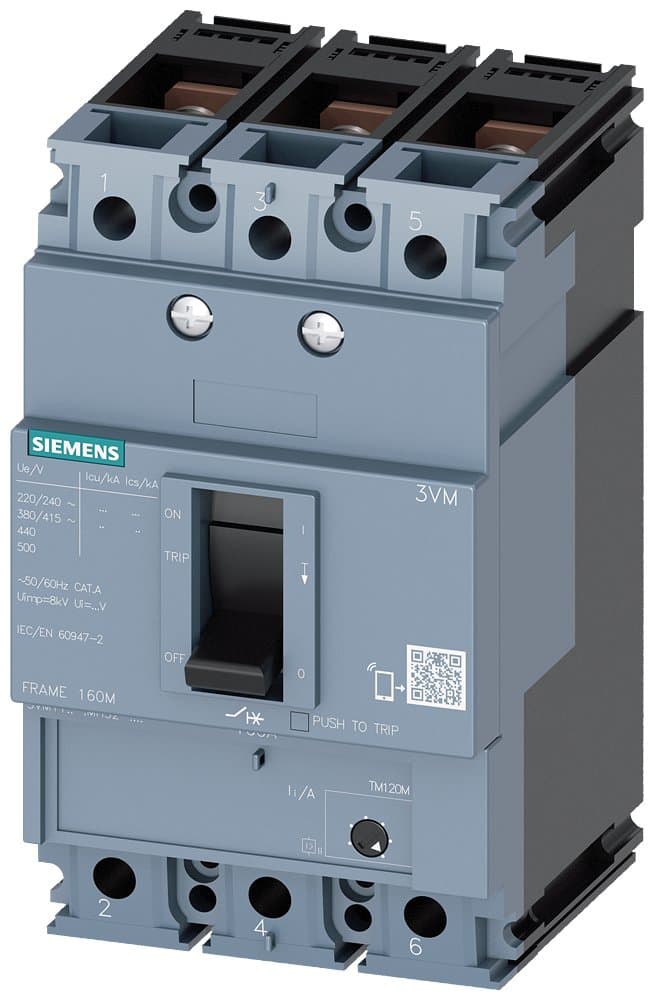

3VM1110-5MH32-0AA0
Selling Points
- 1Breaks short circuits up to 55 kA at 415 V.
- 2Equipped with TM120M starter protection for safe operation.
- 3Suitable for three-phase applications with 100 A operational current.
- 4Meets IEC 60947 standards with a mechanical service life of 20,000 operating cycles.
- 5Compatible with flat-bar terminal connections from 12 x 1 mm to 17 x 6.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1M160 R100 TM120M F/3P; Size 160; Rated Current 100A; Interrupting M:55kA; Trip Unit TM120M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M [Single Magnetic (I adjustable)] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 100 | Specifications: | 160 [8-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1110-5MH32-0AA0 |
Specifications may be subject to change without notice
