Product Model

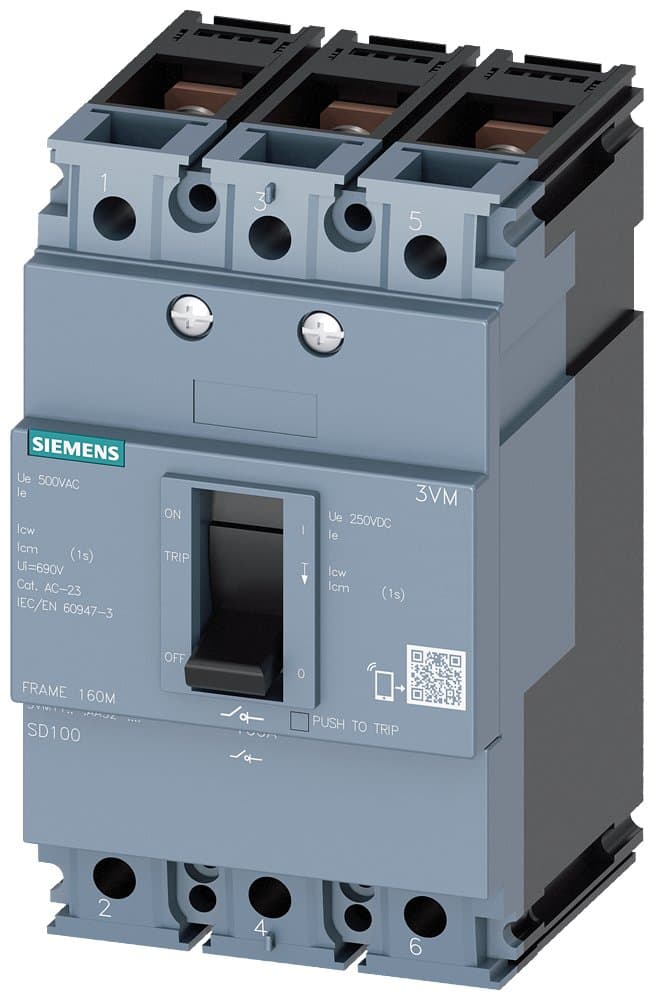

3VM1116-1AA32-0AA0
Selling Points
- 1Compact design with a mounting depth of 70 mm and cover size of 45 mm.
- 2Modular and easy-to-fit internal accessories with diverse functions.
- 3High breaking capacities up to 55 kA at 415 V for 3 or 4-pole breakers.
- 4No derating up to +50 °C, ensuring consistent performance in various environments.
- 5Integrated system with standardized methods of operation, functionality, and installation procedures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage(V): | 415 | Number of Poles: | 3P |
Description | 3VM1B160 R160 SD100 F/3P; Size 160; Rated Current 160A; Breaking B: 16kA; Trip Unit SD100; | Mounting Method: | F: Fixed Type |
Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
Rated Current In(A): | 160 | Specifications: | 160【8-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1116-1AA32-0AA0 |
Specifications may be subject to change without notice
