Product Model

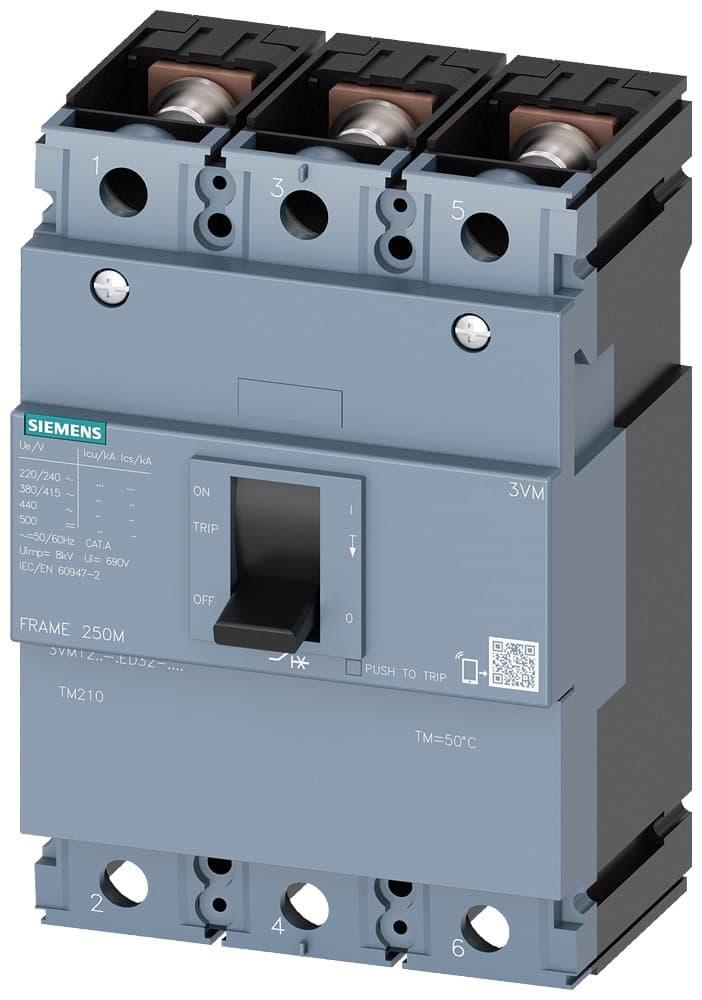

3VM1225-4ED32-0AA0
Selling Points
- 1High breaking capacity of 36kA @ 415V for reliable protection.
- 2IEC frame 250 with 3-pole configuration for comprehensive line protection.
- 3Overload protection up to 250A and short-circuit protection not adjustable.
- 4Includes TM210 and FTFM line protection features for enhanced safety.
- 5Compatible with M-CAD and E-CAD systems for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1S250 R250 TM210 F/3P; Size 250; Rated Current 250A; Interrupting S:36kA; Trip Unit TM210; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210【LI fixed, line protection】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1225-4ED32-0AA0 |
Specifications may be subject to change without notice
