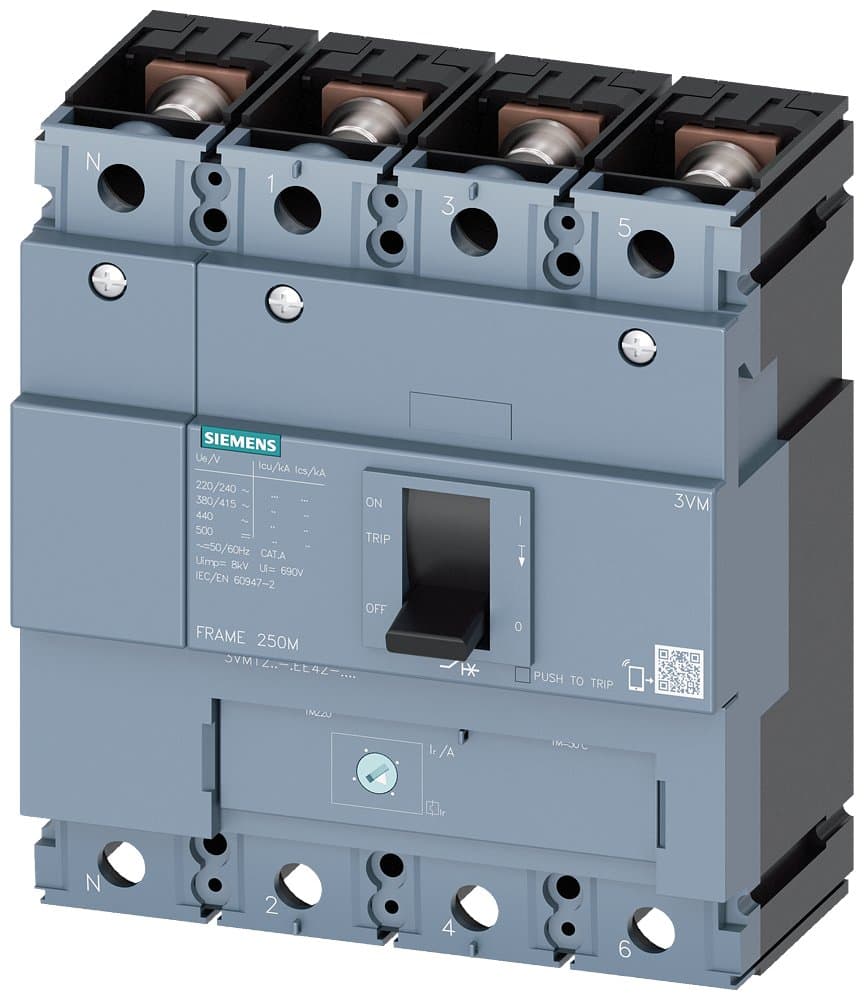

Product Model
3VM1225-4EE42-0AA0
Selling Points
- 136kA at 415V for reliable short-circuit protection.
- 2Equipped with TM220 and ATFM for comprehensive line protection.
- 3Handles up to 250A at 40°C, ensuring continuous operation in various conditions.
- 4Built with a robust IEC frame 250, designed for long-lasting performance.
- 5Measures 158mm in height, 140mm in width, and 70mm in depth, perfect for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
Number of Poles: | 4P | Description | 3VM1S250 R250 TM220 F/4P; Size 250; Rated Current 250A; Interrupting Rating S:36kA; Trip Unit TM220; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1225-4EE42-0AA0 |
Specifications may be subject to change without notice
