Product Model

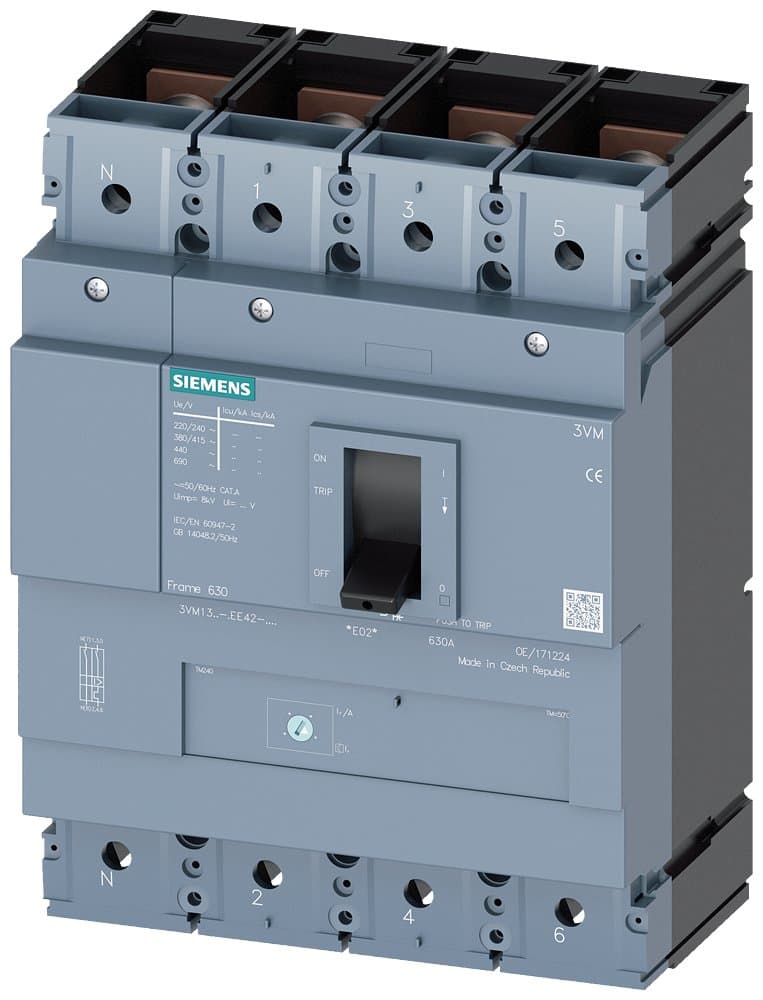

3VM1332-4EE42-0AA0
Selling Points
- 1High Breaking Capacity: 36kA at 415V for reliable line protection.
- 2Advanced Line Protection: Equipped with TM220 and ATFM for comprehensive safety.
- 3Versatile Configuration: Available in 4-pole configuration with 320A overload protection.
- 4Compact Design: Ideal for plant area protection with a mounting depth of 70 mm.
- 5Compliance with Standards: Meets IEC/EN 60947-1, 60947-2, and other industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
Number of Poles: | 4P | Description | 3VM1S400 R320 TM220 F/4P; Size 400; Rated Current 320A; Interrupting S:36kA; Trip Unit TM220; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 320 | Specifications: | 400【250-400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1332-4EE42-0AA0 |
Specifications may be subject to change without notice
