Product Model

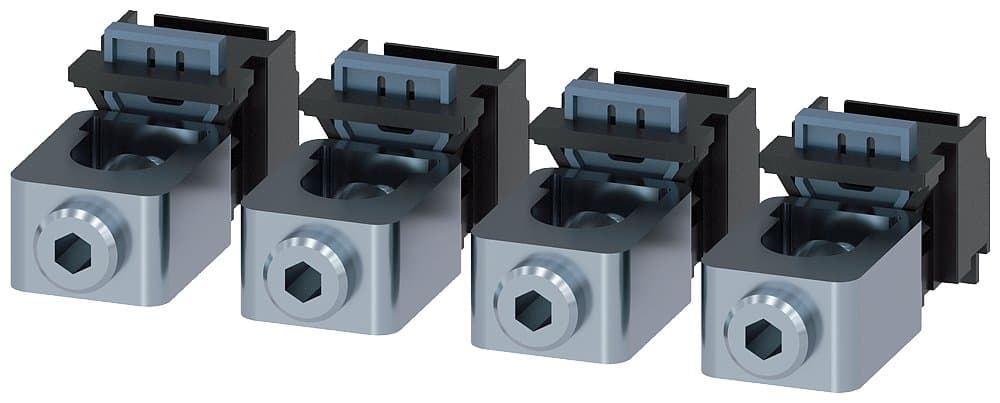

3VM9114-0JB11
Selling Points
- 1Compact Design: The 3VM9114-0JB11 features a compact design with a mounting depth of 70 mm and a cover size of 45 mm, ideal for protecting cables and lines in plant areas.
- 2Modular Accessories: Equipped with a universal platform of accessories, this circuit breaker offers standardized methods of operation, installation procedures, and accessories across all sizes.
- 3Thermal-Magnetic Trip Units: The thermal-magnetic trip units provide economical and cost-efficient overload and short-circuit protection suitable for three-phase AC networks, 400 Hz applications, and DC applications.
- 4High Breaking Capacity: Available in various breaking capacity classes, including up to 55 kA at 415 V AC, ensuring reliable disconnection of short-circuit currents.
- 5Easy Installation: The plug-in technology and DIN rail adapter make installation quick and easy, reducing downtime and enhancing system flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
