Product Model

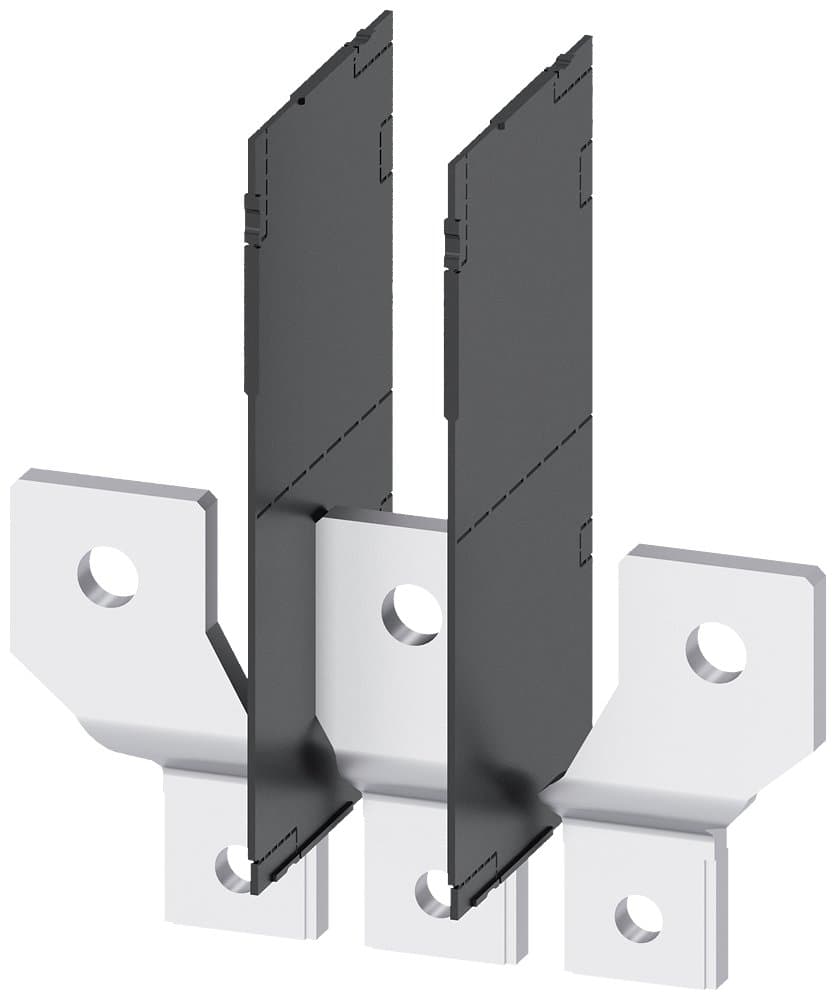

3VM9483-0QC00
Selling Points
- 1Compact Design: The 3VM series features a compact frame size with a mounting depth of 70 mm and cover size of 45 mm, ideal for protecting cables and lines.
- 2Modular Accessories: The circuit breakers come with a universal platform of accessories across all sizes, ensuring standardized methods of operation, functionality, and installation.
- 3High Breaking Capacity: Available in 1 to 4-pole versions with breaking capacities ranging from 16 kA to 55 kA at 415 V AC, making them suitable for various short-circuit applications.
- 4Thermal-Magnetic Trip Units: Equipped with thermal-magnetic trip units for providing overload and short-circuit protection, suitable for three-phase AC networks, 400 Hz applications, and DC applications.
- 5Ergonomic Design: The circuit breakers have an ergonomic design with clear status indication through color-coded switching positions (ON – Red, TRIP – Yellow, OFF – Green), enhancing operational safety and ease of use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
