Product Model

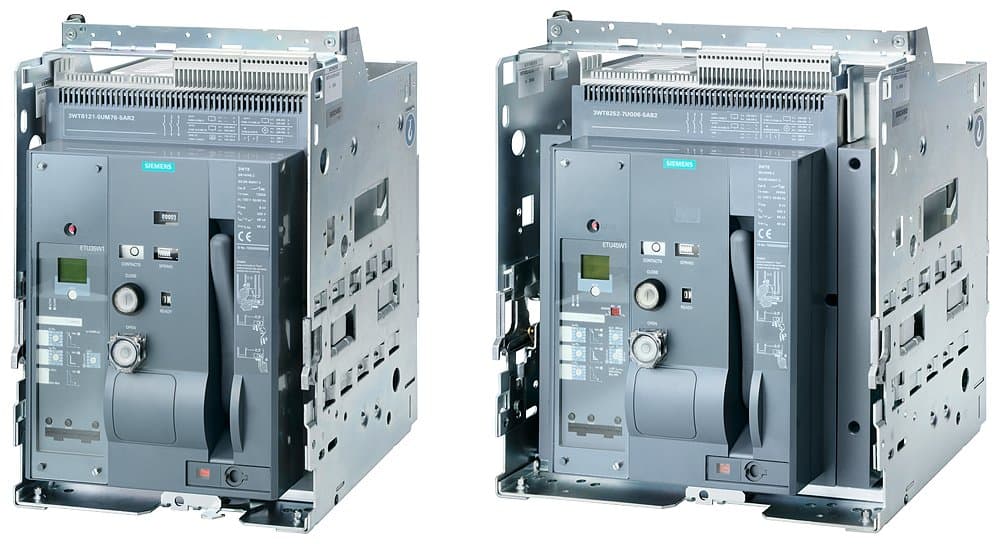

3WT8202-6UU34-5AB1
Selling Points
- 1High Current Rating: Handles up to 2000A with a maximum short-circuit current breaking capacity (Icu) of 66kA at 500V AC.
- 2Mechanical Lockout Device: Ensures safety with a mechanical lockout device that prevents unauthorized switching off.
- 3Tripped Signaling Switch: Features a tripped signaling switch with tripped indicators for easy monitoring.
- 4Motorized/Manual Operating Mechanism: Offers both motorized and manual operating mechanisms with memory for precise control.
- 5Environmental Durability: Operates within a wide ambient temperature range (-20°C to 70°C) and can be stored between -40°C and 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Lifecycle | P.M300 | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3WT8202-6UU34-5AB1 |
Specifications may be subject to change without notice
