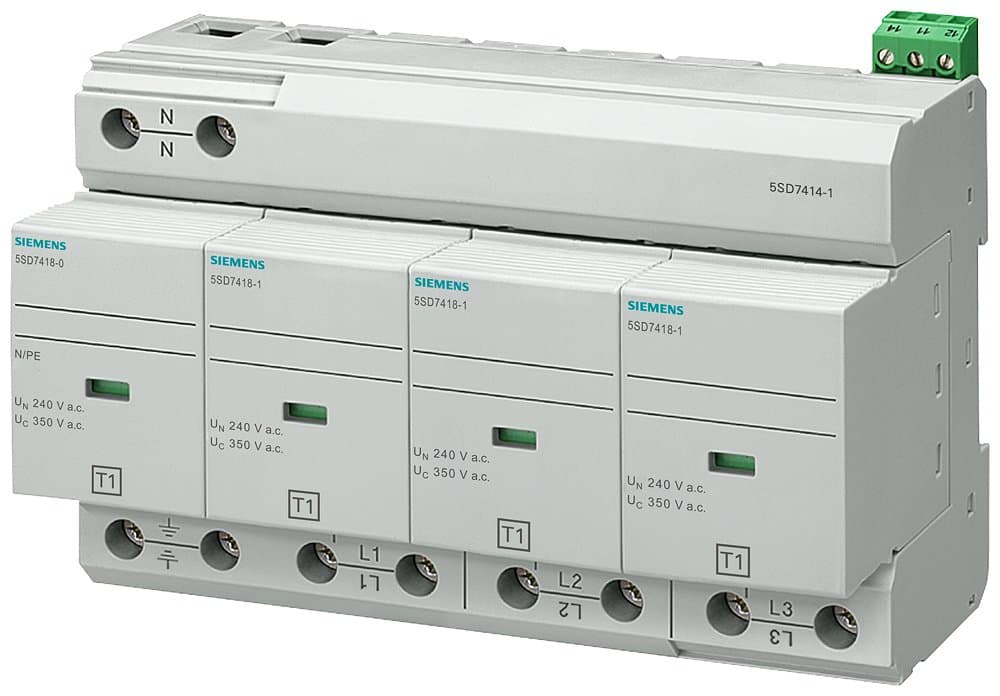

Product Model
5SD7414-1
Selling Points
- 1High Surge Protection: Protects against lightning surges with a nominal discharge surge current of 25 kA.
- 2Type 1 Requirement Class B: Meets the highest standards for lightning protection in industrial settings.
- 34-Pole, 3+1 Circuit: Designed for TN-S and TT systems with remote display for easy monitoring.
- 4Pluggable Protective Modules: Easy installation with pluggable modules for quick setup.
- 5IP20 Degree of Protection: Ensures reliable operation in harsh environments with an IP20 rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 5SD74 T1 350V 100kA 3P+N RSC; B(T1):Class I; 25(L-N)/100(N-PE); Equipped with RSC remote indication contacts | Uc: | 350 |
Imax_Iimp(kA): | 25(L-N)/100(N-PE) | Level: | B(T1):Class I |
Product Type: | Gray Series | Others: | Equipped with RSC remote indication contacts |
Poles: | 3P+N | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 5SD7414-1 |
Specifications may be subject to change without notice
