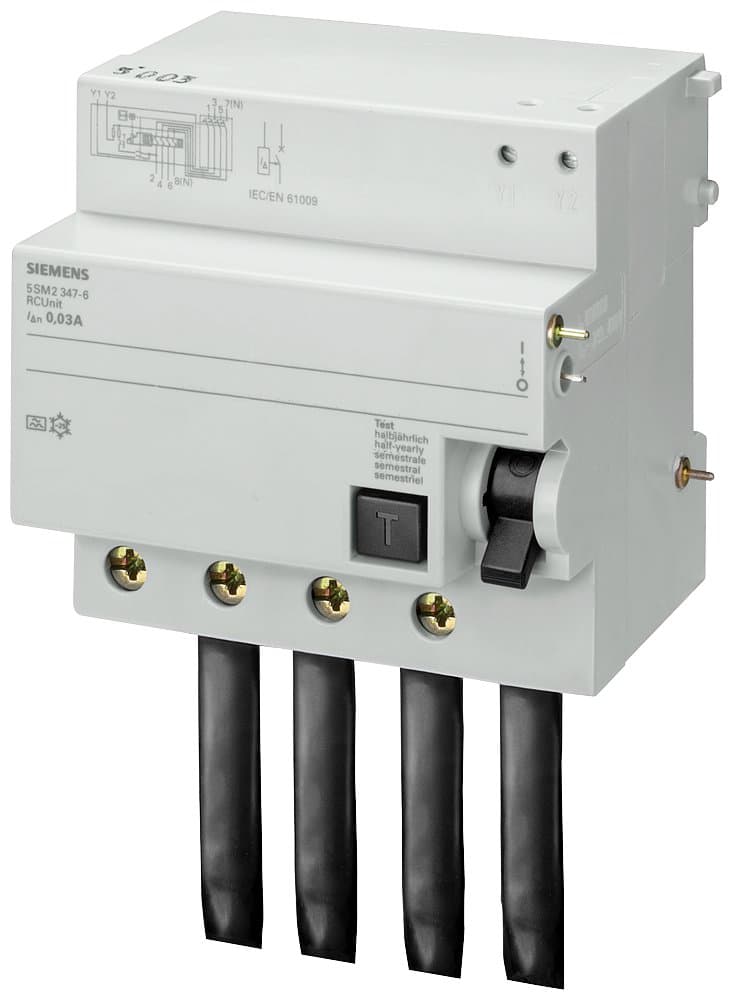

Product Model
5SM2647-6
Selling Points
- 1High Current Capacity: 100A nominal current for robust protection.
- 2Compact Design: Lightweight at 0.680 kg for easy installation.
- 3Wide Compatibility: Compatible with miniature circuit breakers for various applications.
- 4Safety Features: Anti-nuisance tripping version for reliable operation.
- 5Easy Integration: Simple plugging mechanism without tools required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 5SM2_A_0.3 4P 100A for 5SP4 B/C curve; Rated Current 100A; 4P; Residual Current 300mA; Type A; Electromagnetic; Compatible with 5SP4 B/C characteristic curves | Testing Method: (ELE: Electronic, ELM: Electromagnetic) | Electromagnetic |
Leakage Current Type: | A | Residual Current: | 300mA |
Product Type: | Residual Current Protection Module | Number of Poles: | 4P |
In(A): | 100 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 5SM2647-6 |
Specifications may be subject to change without notice
