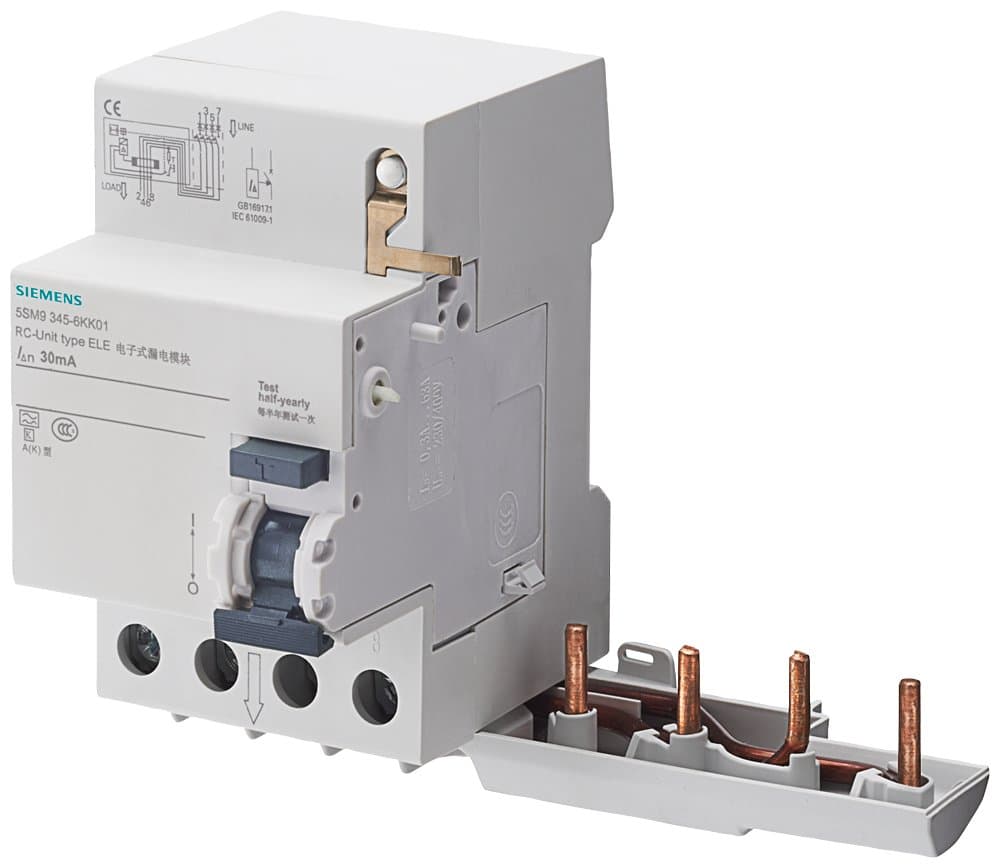

Product Model
5SM9346-6
Selling Points
- 1Instantaneous Protection: Provides immediate protection against residual current faults.
- 2High Current Rating: Supports up to 63 A operational current and 10 kA short-circuit current rating.
- 3Durable Design: Designed for 10,000 switching cycles with a mechanical service life.
- 4Versatile Installation: Compatible with DIN rail mounting and suitable for various ambient temperatures.
- 5Comprehensive Certifications: Meets IEC and DIN standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Type | Residual Current Protection Module | Number of Poles | 4P |
Description | 5SM9_For 5SN4 & 5SL4 RC-Unit; Rated Current 63A; 4P; Residual Current 30mA; Type A; Electronic | Testing Method (ELE electronic, ELM electromagnetic) | Electronic |
Residual Current Type | A | Residual Current | 30 mA |
Rated Current In (A) | 63 | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 5SM9346-6 |
Specifications may be subject to change without notice
