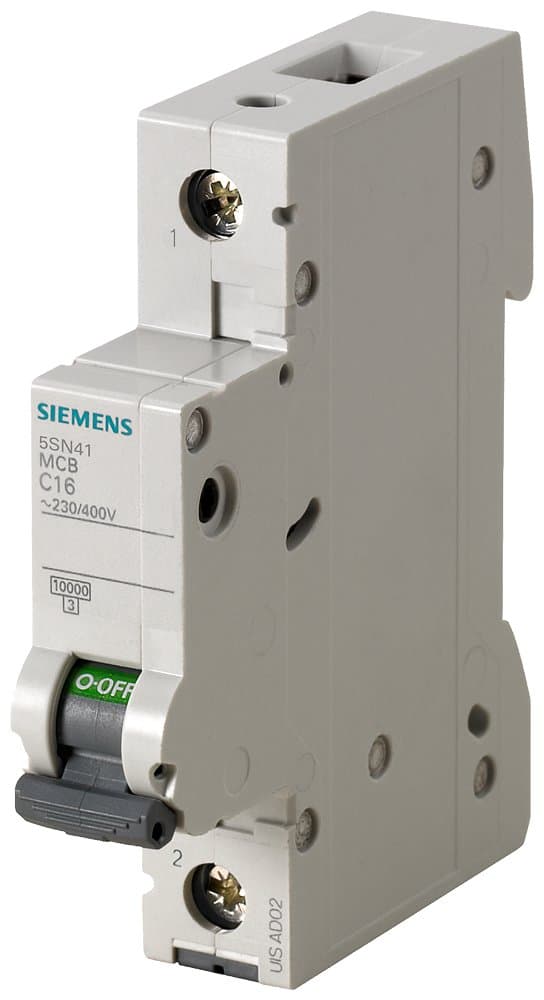

Product Model
5SN4120-6CN
Selling Points
- 1Excellent current limiting and selectivity characteristics.
- 2Thermal/Magnetic trip type for reliable protection.
- 3Compact design with 90 mm H x 18 mm W x 70 mm D dimensions.
- 4IP20 enclosure for safe operation.
- 5Easy DIN rail mounting for quick installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Installation Module | 1 | Specification | 5SN4【6-63A】 |
Number of Poles | 1 | Trip Unit | B【B characteristic curve】 |
Breaking Capacity Icn(kA) per IEC60898 Standard | 10 | Rated Current In(A) | 20 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 5SN4120-6CN |
Specifications may be subject to change without notice
