SiemensHuman Machine Interface (HMI)
Product Model

6AV2124-1JC01-0AX0

Manufacturer

Siemens

Category

Human Machine Interface (HMI)

Product ID

169006

In Stock
Last updated: 2025/4/28
View Specifications

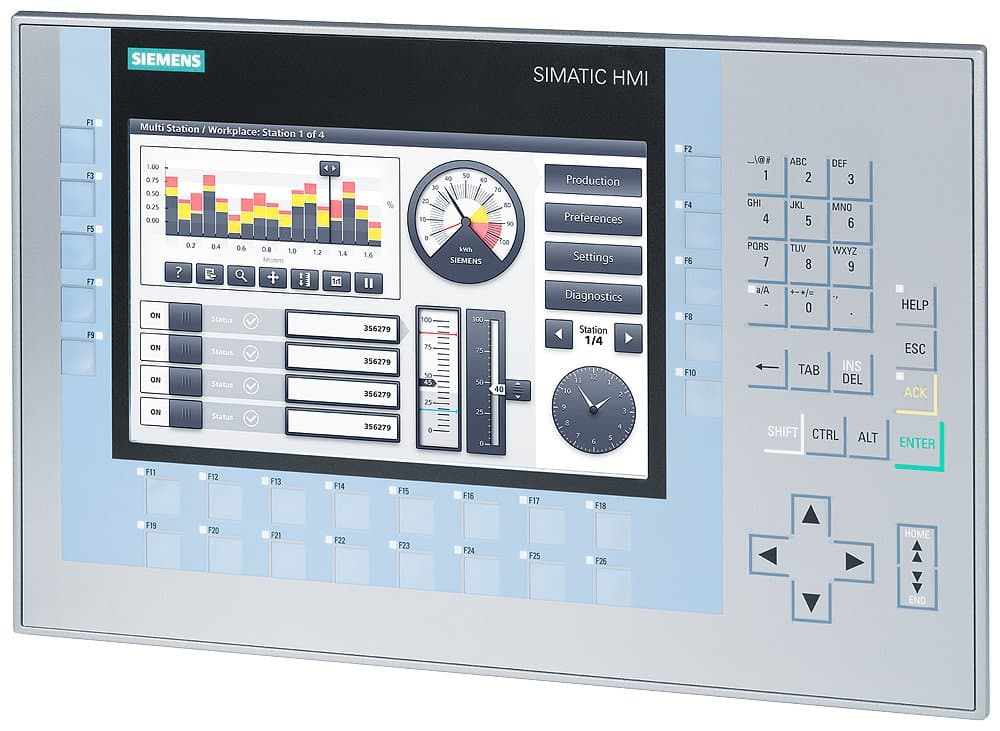

Siemens 6AV2124-1JC01-0AX0

Selling Points

  • 1High-Resolution Display: 9-inch widescreen TFT display with 800x480 pixel resolution.
  • 2Advanced Connectivity: PROFINET interface, MPI/PROFIBUS DP interface, and two USB 2.0 ports.
  • 3Configurable and Customizable: Configurable from WinCC Comfort V11 with 16 million colors.
  • 4Robust and Reliable: MTBF backlighting of 80,000 hours and IP65 front protection rating.
  • 5Versatile Operation: Key operation with 26 function keys and numeric/alphanumeric keyboards.
Product Details
6AV2124-1JC01-0AX0
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Color Quantity/Gray Scale
16,777,216 colors
Power Supply Voltage
24V
User Script Support
VB
Internal Variables
2048
Pattern Type
Bar Graph/Curve f(t),f(x)
Communication Interface
Serial/MPI/PROFIBUS DP/PROFINET*2
Number of USB Interfaces
2
Memory Card Slot
MMC/SD
Memory System
12MB
Operation Method
Keypad
Resolution
800*480
Display Size (inches)
9"
Lifecycle
P.M300
Country of Origin
China
ECCN
9N9999
AL
N
Model Number
6AV2124-1JC01-0AX0

Specifications may be subject to change without notice
