Product Model

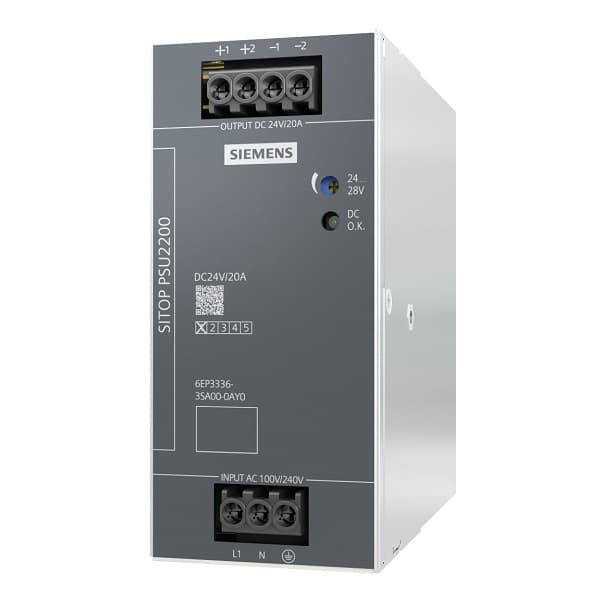

6EP3336-3SA00-0AY0
Selling Points
- 1Stable Output: Provides a stable 24V DC output with a current of 20A.
- 2Wide Input Range: Compatible with input voltages of 100-240V AC.
- 3Compact Design: Compact size for easy installation in industrial settings.
- 4High Reliability: Designed for continuous operation in demanding industrial environments.
- 5Compliance with Regulations: Meets RoHS and WEEE compliance standards since 2022.06.30.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Weight | 0.87kg | Depth | 116.8mm |
Height | 123.6mm | Width | 56mm |
PCB Conformal Coating | Yes | Cold Start Temperature | -40℃ |
Operating Temperature | -30~+70℃ | Protection Rating | IP20 |
Output Power | 480W | Input Voltage Range | AC 90~264V |
Power Supply Phases | Single-phase AC input DC output | Output Current | 20A |
Adjustable Output Voltage Range | DC24~28V | Output Voltage | DC 24V |
Input Voltage | AC 90~264V | Lifecycle | P.M300 |
Country of Origin | China | ECCN | EAR99 |
AL | N | Model Number | 6EP3336-3SA00-0AY0 |
Specifications may be subject to change without notice
