Product Model

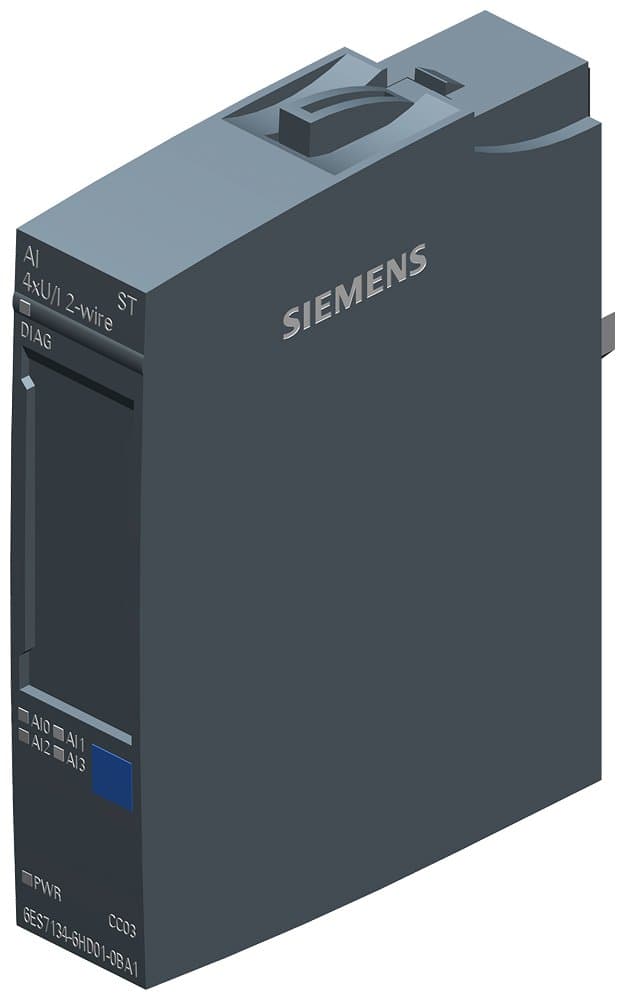

6ES7134-6HD01-0BA1
Selling Points
- 1High Precision Measurement: The module offers 16-bit resolution and +/-0.3% accuracy for precise voltage and current measurements.
- 2Versatile Input Ranges: Supports various input ranges including ±10 V, ±5 V, 1 to 5 V, and 0 to 10 V for voltage measurements, as well as 4 to 20 mA and 0 to 20 mA for current measurements.
- 3Electrical Isolation: Electrically isolated from the supply voltage L+ for enhanced safety and reliability.
- 4Configurable Diagnostics: Supports configurable diagnostics per module, enabling real-time monitoring and error detection.
- 5Compact Design: Measuring 15 x 73 x 58 mm and weighing 31 grams, making it a compact solution for industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
