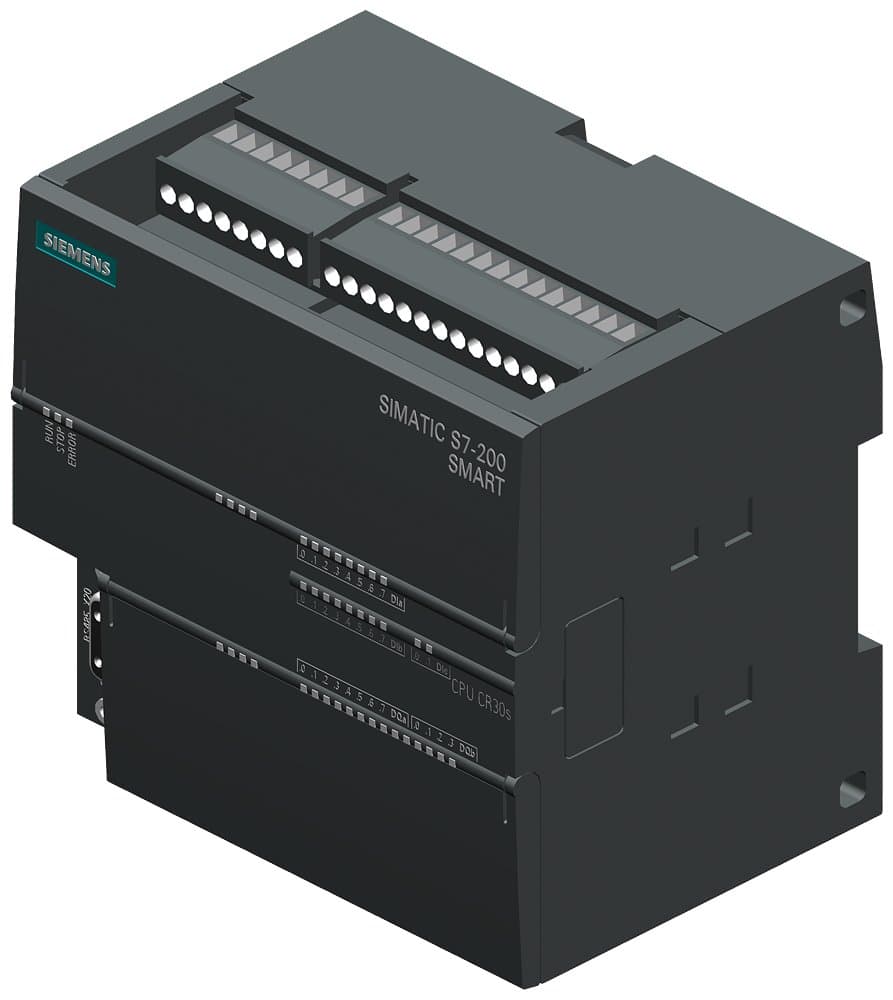

Product Model
6ES7288-1CR30-0AA1
Selling Points
- 1Supports 85V to 264VAC, ensuring compatibility with various industrial power sources.
- 2Executes instructions in as little as 150 ns for bit operations, making it ideal for fast processes.
- 3Includes 18 digital inputs and 12 relay outputs, with parameterizable input delay options.
- 4Compliant with IEC 61000 standards, offering robust protection against electromagnetic interference.
- 5Rail-mounted for easy installation, measuring 110 mm wide, 100 mm high, and 81 mm deep.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 81mm | Height | 100mm |
Width | 110mm | PROFINET Interfaces | 0 |
Processor Speed (1K, binary operation) | 0.15ms | Digital Outputs | 12 |
Digital Inputs | 18 | Operating Voltage | 24V DC |
Model | CR30s | Type | Compact |
Product Type | CPU | Lifecycle | P.M300 |
Country of Origin | China | ECCN | EAR99H |
AL | N | Model Number | 6ES7288-1CR30-0AA1 |
Specifications may be subject to change without notice
