Product Model

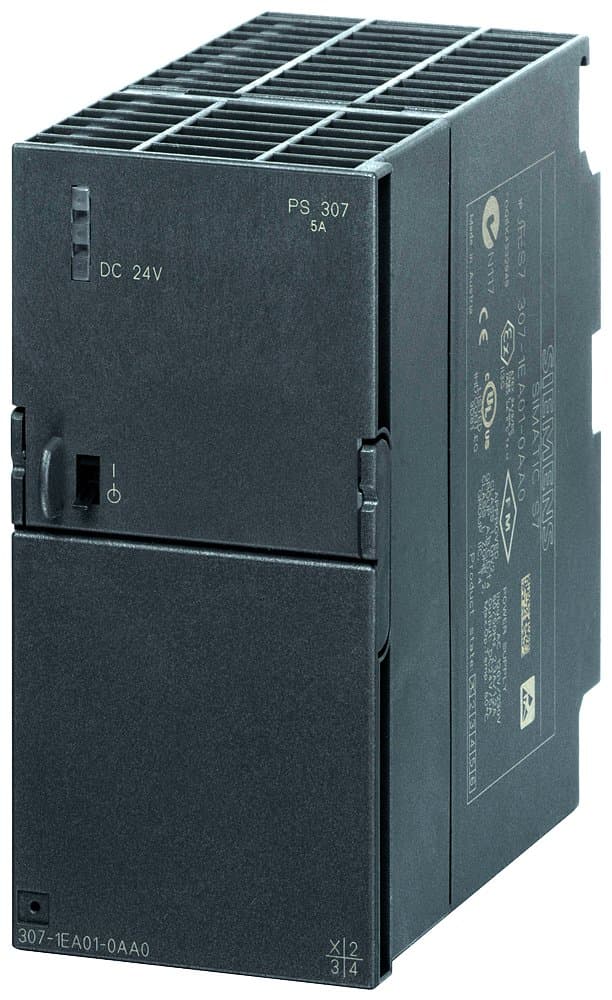

6ES7307-1EA01-0AA0
Selling Points
- 1Supports 120/230V AC input with automatic voltage switching.
- 2Operates at 87% efficiency, minimizing power loss.
- 3Measuring 60 x 125 x 120 mm, ideal for space-constrained applications.
- 4Features electronic short-circuit protection and automatic voltage recovery.
- 5Meets EN 60950-1, EN 50178, and other international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Output Power | 120W | Input Voltage Range | AC 85-132V/170-264V |
Number of Phases | Single Phase AC | Rated Output Current | 5A |
Rated Output Voltage | DC 24V | Rated Input Voltage | AC 120/230V |
Lifecycle | P.M300 | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 6ES7307-1EA01-0AA0 |
Specifications may be subject to change without notice
