Product Model

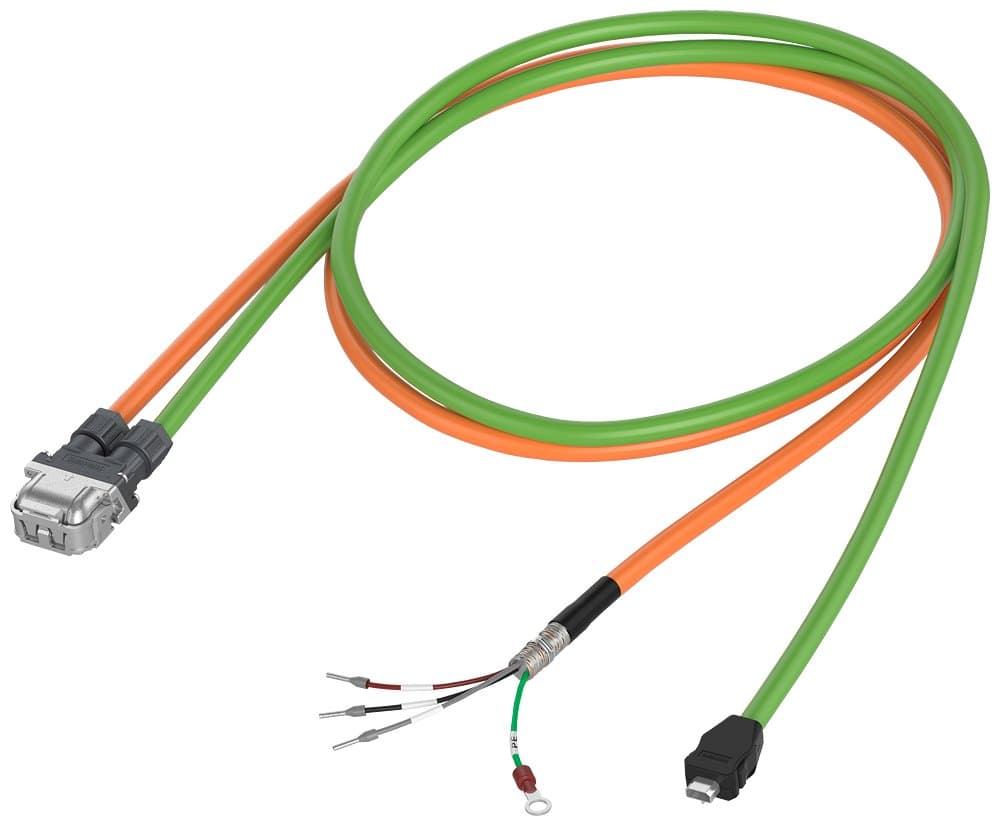

6FX3502-7CD01-1AD0
Selling Points
- 1High-Performance Motor Compatibility: Compatible with S-1FL2 SH20/30/40 motors and S200, MOTION-CONNECT 350.
- 2Dual Cable Configuration: Pre-assembled dual cables with 4x0.75 and 3x2x0.25 configurations.
- 3Long Length and Durability: Available in 3m length, designed for 1 million bending times.
- 4Efficient Power Handling: Handles a maximum power of 7.5mm and encoder of 7.0mm without brake.
- 5Compliance and Certifications: Meets eClass 5.1, ETIM 7, and other industry standards for quality and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cross Section | 4x0.75/3x2x0.25 | Cable Length | 3m |
Bending Cycles (m indicates million) | 100m | Exit Direction (Valid only for motors with shaft height 20/30/40) | Shaft end exit |
Brake Included | No brake control included | Flexibility | Non-flexible |
Motor Shaft Height | SH20/30/40 | Cable Type | Single connector dual cable |
Lifecycle | P.M300 | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6FX3502-7CD01-1AD0 |
Specifications may be subject to change without notice
