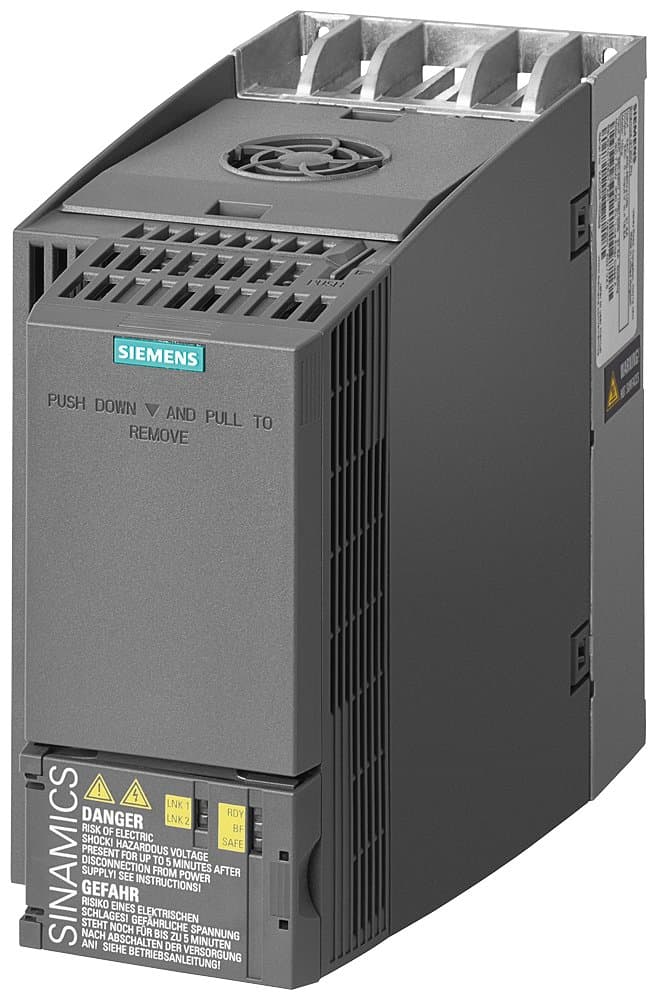

Product Model
6SL3210-1KE21-7AP1
Selling Points
- 1Reduces energy consumption with precise vector control.
- 2Suitable for conveyor belts, mixers, pumps, fans, and compressors.
- 3Available in seven frame sizes with a power range of 0.55 to 132 kW.
- 4Includes Safe Torque Off (STO) and integrated PROFIBUS-DP for enhanced safety.
- 5Quick commissioning via USB or local panels, with wireless access options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 203mm | Height | 196mm |
Width | 100mm | Analog Outputs | 1 |
Analog Inputs | 1 | Digital Outputs | 2 |
Digital Inputs | 6 | Protection Rating | IP20 |
Dimensions | FSB | Number of Phases | 3 |
Filter | Integrated Class A Filter | Motor Power | 7.5kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6SL3210-1KE21-7AP1 |
Specifications may be subject to change without notice
