Product Model

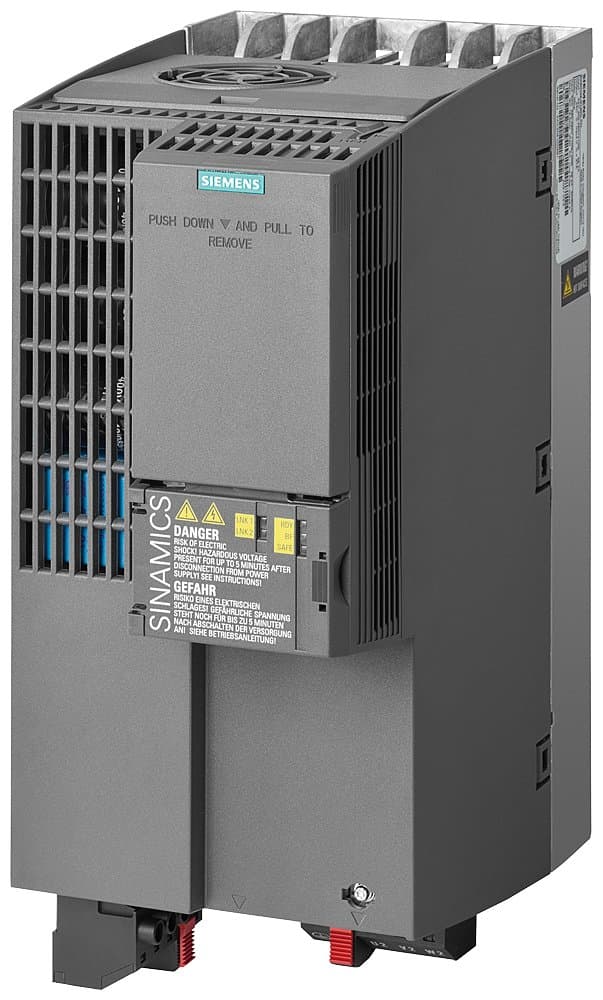

6SL3210-1KE22-6UB1
Selling Points
- 1Rated power of 11 kW with 150% overload for 3 seconds.
- 2Integrated Safe Torque Off (STO) function for enhanced safety.
- 3Supports multiple fieldbus systems including MODBUS RTU and PROFIBUS.
- 4Dimensions of 295 x 140 x 203 mm, making it ideal for space-constrained applications.
- 5Easy commissioning via USB, Basic Operator Panel, or Intelligent Operator Panel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 203mm | Height | 295mm |
Width | 140mm | Analog Outputs | 1 |
Analog Inputs | 1 | Digital Outputs | 2 |
Digital Inputs | 6 | Protection Rating | IP20 |
Size | FSB | Input Phases | 3 |
Filter | No Built-in Class A Filter | Motor Power Compatibility | 11.0kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6SL3210-1KE22-6UB1 |
Specifications may be subject to change without notice
