Product Model

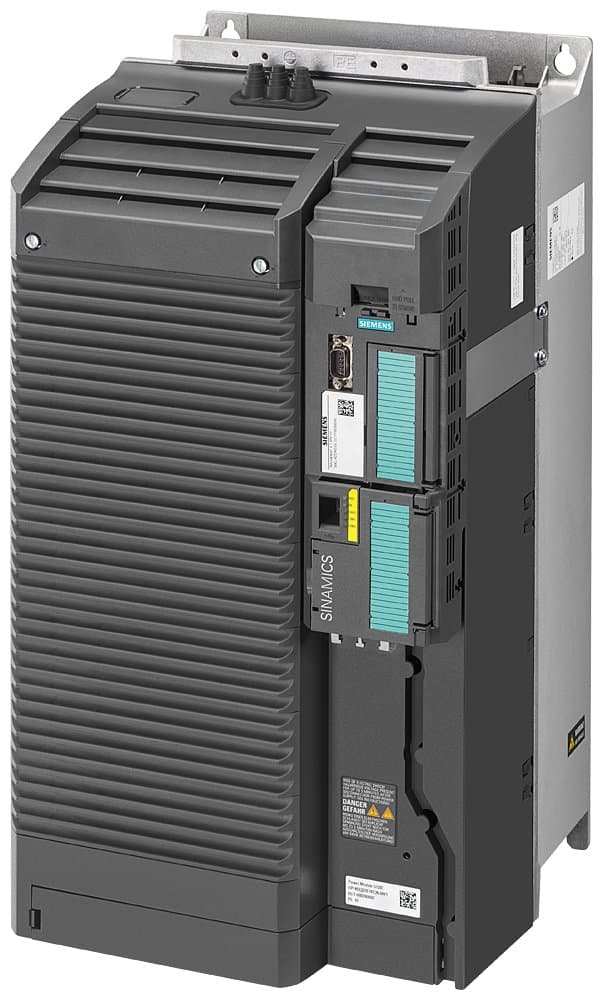

6SL3210-1KE31-1UF1
Selling Points
- 1Designed for cost-effective performance with a wide range of functions.
- 2Compact size with superior power density, perfect for space-constrained environments.
- 3Fast installation and commissioning process with user-friendly connections.
- 4Rated power of 55 kW with 150% overload capability for 3 seconds.
- 5Supports PROFINET-PN fieldbus and other common communication interfaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 237mm | Height | 551mm |
Width | 275mm | Analog Outputs | 1 |
Analog Inputs | 1 | Digital Outputs | 2 |
Digital Inputs | 6 | Protection Rating | IP20 |
Size | FSE | Input Phases | 3 |
Filter | No Built-in Class A Filter | Motor Power | 55.0kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | 9I999KP |
Model Number | 6SL3210-1KE31-1UF1 |
Specifications may be subject to change without notice
