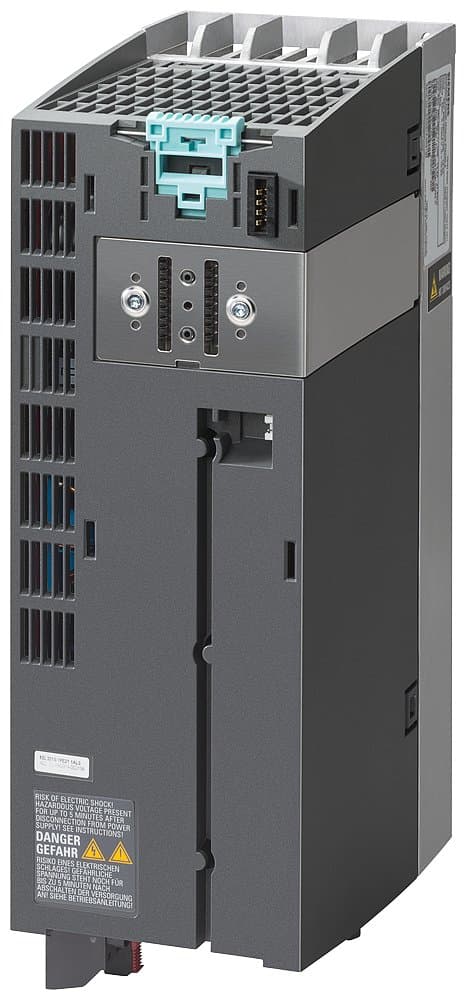

Product Model
6SL3210-1PE21-1AL0
Selling Points
- 1Handles up to 3kW for 200% overload and 4kW for 150% overload.
- 2Built for reliability with ambient temperatures ranging from -10°C to +50°C.
- 3Suitable for four-quadrant applications with 3AC380-480V +10/-10% voltage tolerance.
- 4Ensures safe installation in control cabinets without additional protection.
- 5Compatible with various control units like CU230-2, CU240x-2, and CU250S-2 for flexible application.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 165mm | Height | 292mm |
Width | 100mm | Protection Rating | IP20 |
Dimensions | FSB | Number of Phases | 3 |
Filter | Integrated Class A Filter | Motor Power | 4kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6SL3210-1PE21-1AL0 |
Specifications may be subject to change without notice
