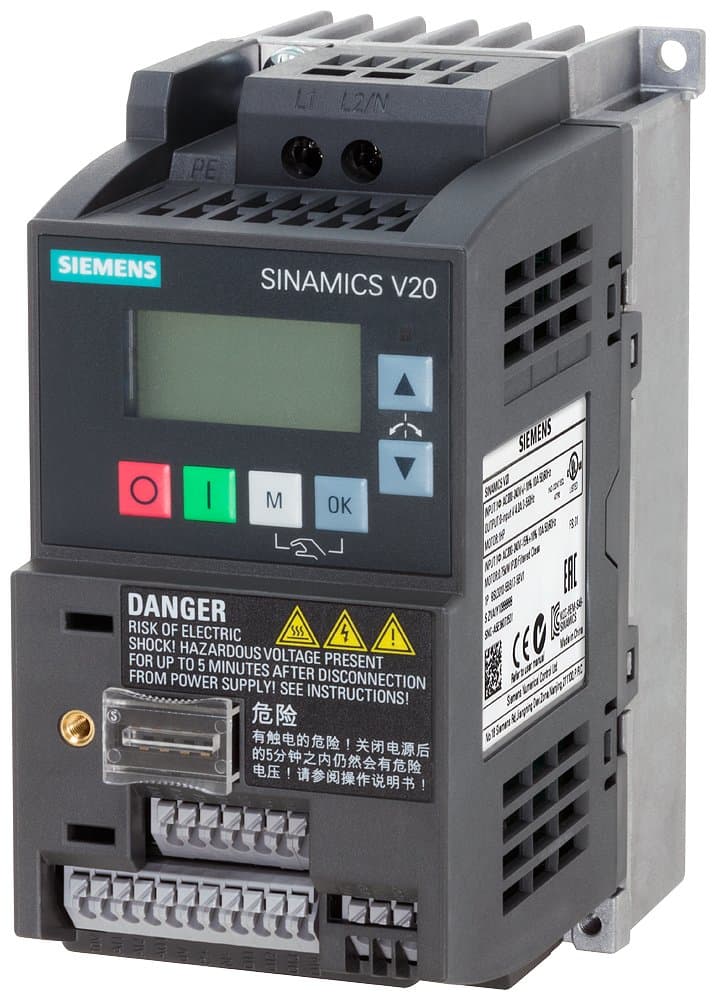

Product Model
6SL3210-5BB17-5BV1
Selling Points
- 10.75 kW with 150% overload for 60 seconds.
- 2C1 I/O interface with 4 DI, 2 DO, 2 AI, and 1 AQ.
- 3Supports USS/MODBUS RTU with built-in BOP protection.
- 4IP20/ UL open size: QB 68x142x128 (WxHxD).
- 5Meets RoHS directive since July 5, 2010, and WEEE take-back obligation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 127.8mm | Height | 142mm |
Width | 68mm | Digital Outputs | 2 |
Digital Inputs | 4 | Protection Rating | IP20 |
Dimensions | FSAB | Output Phases | 3 |
Input Phases | 1 | Power Supply Phases | 1AC |
Filter | Filter C1 | Motor Power | 0.75kW |
Rated Voltage | 200-240V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6SL3210-5BB17-5BV1 |
Specifications may be subject to change without notice
