Product Model

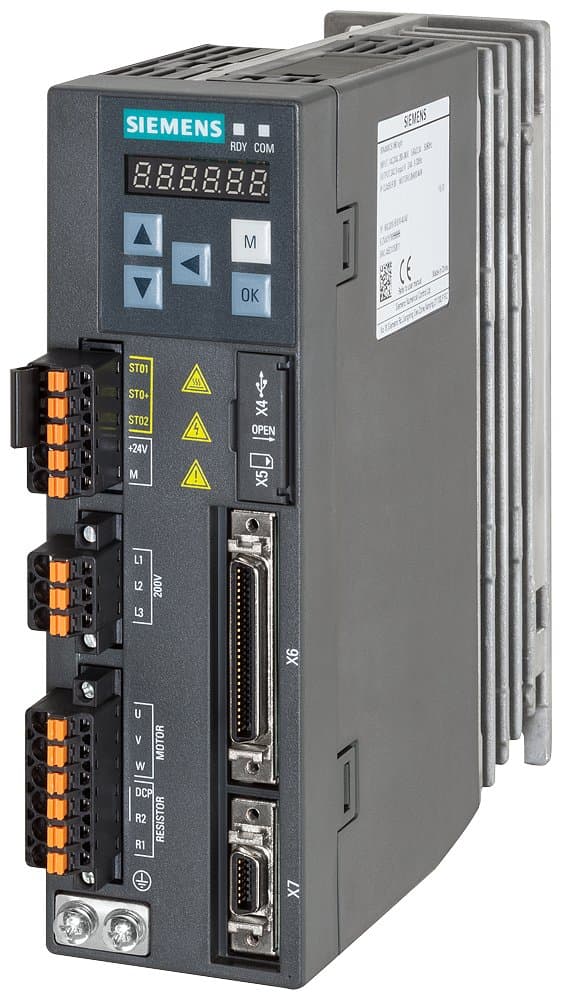

6SL3210-5FB10-4UA1
Selling Points
- 1The SINAMICS V90 drive system is designed to handle a wide range of motion control tasks with high precision and speed.
- 2Operates on 1/3-phase AC input voltage of 200-240V with a tolerance of -15% to +10%.
- 3Delivers a motor power of 0.4 kW, suitable for various industrial applications.
- 4Measuring 55x170x170 (WxHxD) with an IP20 degree of protection, it fits seamlessly into most control systems.
- 5Ensures continuous operation with a maximum output current of 2.6A and a frequency range of 0-330 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 170mm | Height | 170mm |
Width | 55mm | Digital Outputs | 6 |
Digital Inputs | 10 | Protection Rating | IP20 |
Size | FSB | Input Phases | 1 |
Filter | No Built-in Filter | Rated Output Current | 2.6A |
Motor Power | 0.4KW | Rated Voltage | 200-240V |
Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 6SL3210-5FB10-4UA1 |
Specifications may be subject to change without notice
