Product Model

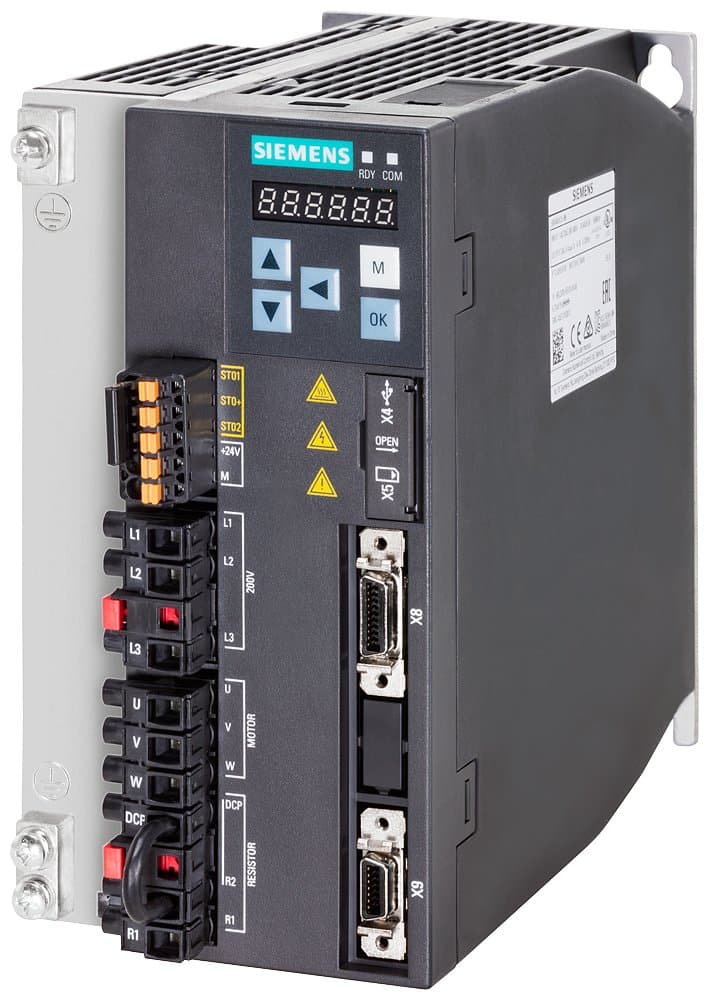

6SL3210-5FB11-5UF0
Selling Points
- 1High-Power Drive Solution: The 6SL3210-5FB11-5UF0 is designed to handle high-power applications with a rated power of 1.5 kW.
- 2PROFINET Connectivity: Equipped with PROFINET, this drive offers seamless communication and control in industrial settings.
- 3Wide Voltage Range: Operates within a wide voltage range of 200-240 V, with a tolerance of -15% to +10%.
- 4Compact Design: Weighs only 3.5 kg, making it a compact solution for various industrial applications.
- 5Enhanced Safety Features: Includes safety features like STO (Safe Torque Off) and SIL 2 certification for enhanced safety in operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 195mm | Height | 170mm |
Width | 95mm | Digital Outputs | 2 |
Digital Inputs | 4 | Protection Rating | IP20 |
Dimensions | FSD | Input Phases | 3 |
Filter | No built-in filter | Rated Output Current | 10.6A |
Motor Power | 1.5kW | Rated Voltage | 200-240V |
Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 6SL3210-5FB11-5UF0 |
Specifications may be subject to change without notice
