Product Model

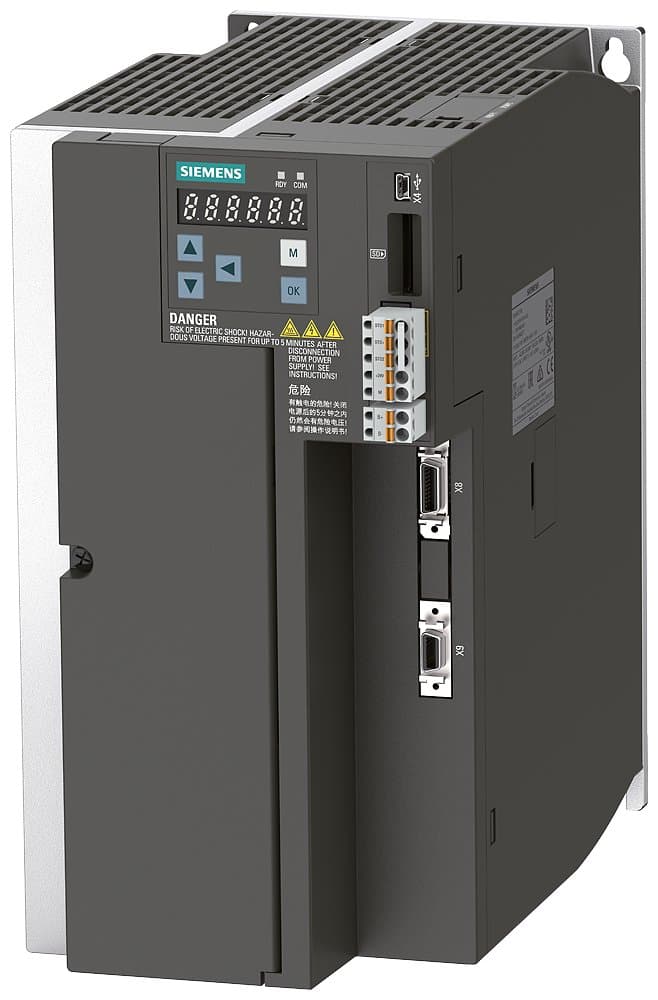

6SL3210-5FE15-0UF0
Selling Points
- 1High-performance motor control with PROFINET interface for seamless communication.
- 2Robust design with IP20 protection, ensuring reliability in harsh industrial environments.
- 3Compatible with a wide range of motors, including 5.0 kW options.
- 4Advanced safety features including warning notices and safety instructions for safe operation.
- 5Easy commissioning and parameterization through the basic operator panel (BOP).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 240mm | Height | 260mm |
Width | 140mm | Digital Outputs | 2 |
Digital Inputs | 4 | Protection Rating | IP20 |
Dimensions | FSC | Input Phases | 3 |
Filter | No built-in filter | Rated Output Current | 12.6A |
Motor Power | 5.0kW | Rated Voltage | 380-480V |
Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 6SL3210-5FE15-0UF0 |
Specifications may be subject to change without notice
