Product Model

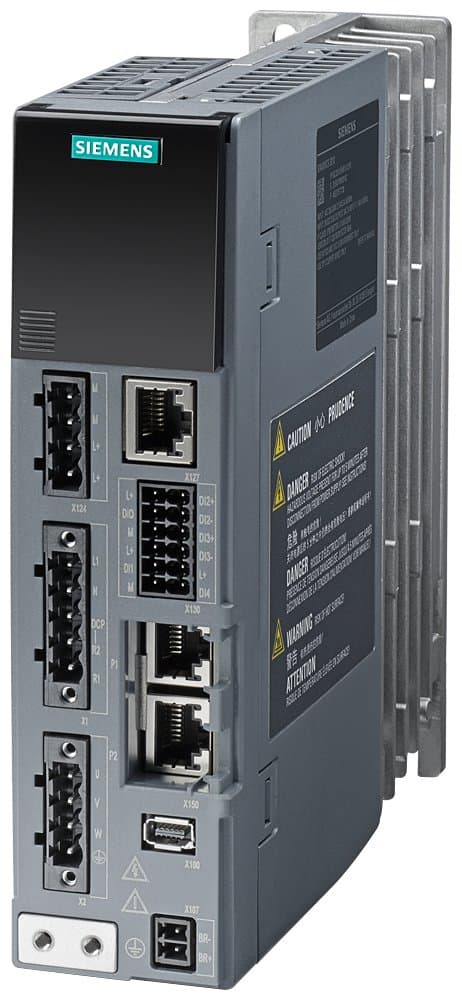

6SL3210-5HB10-1UF0
Selling Points
- 1High-Performance Servo Drive: Designed for demanding applications with high precision and dynamic response.
- 2Wide Voltage Range: Operates on 200-240V 1AC with ±10% tolerance, ensuring flexibility in different environments.
- 3Integrated Communication: Features a PROFINET interface for seamless communication with control systems.
- 4Energy Efficiency: Optimized for reduced power consumption and energy savings through variable-speed operation.
- 5Compact Design: Utilizes One Cable Connection (OCC) technology for simplified installation and reduced space requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 172.4mm | Height | 170mm |
Width | 45mm | Digital Outputs | 0 |
Digital Inputs | 5 | Protection Rating | IP20 |
Dimensions | FSA | Output Phases | 3 |
Input Phases | 1 | Motor Power | 0.1kW |
Rated Voltage | 200-240V | Product Type | Variable Frequency Drive |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 3A999A | AL | N |
Model Number | 6SL3210-5HB10-1UF0 |
Specifications may be subject to change without notice
