Product Model

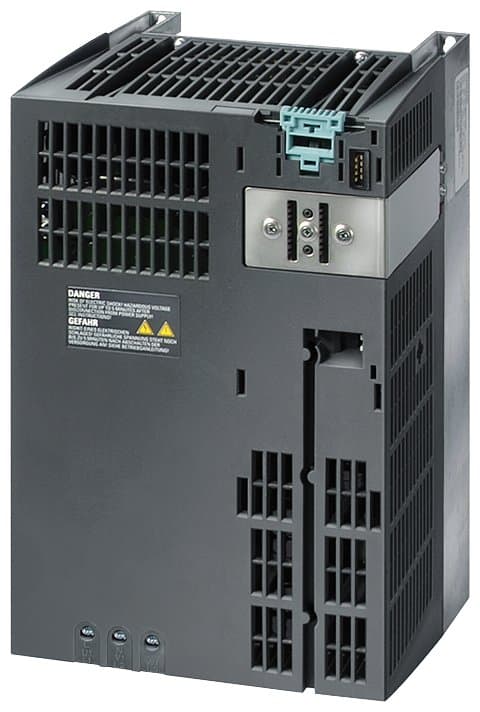

6SL3225-0BE27-5AA1
Selling Points
- 1High Efficiency: Optimized for low overload operation with 11 kW output power.
- 2Wide Voltage Range: Compatible with 380 to 480 Volt AC input voltage.
- 3Robust Design: Built-in class A filter and regenerative braking capabilities.
- 4Safety Compliance: Meets UL, CUL, CE, C-Tick (RCM), and SEMI F47 standards.
- 5Versatile Integration: Compatible with SINAMICS G120 standard inverters and control units like CU230P-2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 185mm | Height | 334mm |
Width | 189mm | Protection Rating | IP20 |
Dimensions | FSC | Number of Phases | 3 |
Filter | Integrated Class A Filter | Motor Power | 11kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 6SL3225-0BE27-5AA1 |
Specifications may be subject to change without notice
